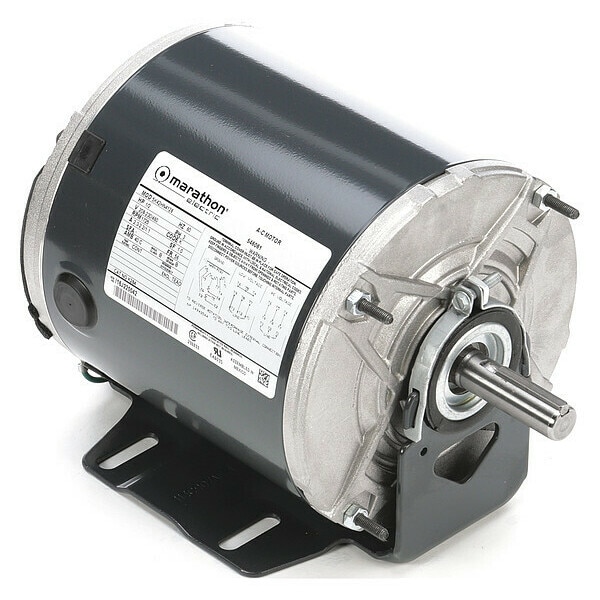

3-Phase Belt Drive Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 1,725 Nameplate RPM
Mfr # 5K42HN4128
Zoro # G0749520
product price:Â $413.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/2
No. of Speeds
1
RPM Range
1,701-1,800
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
5K42HN4128
Zoro #
G0749520
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Resilient Ring Dia.
2 1/4 in
Length Less Shaft
8 3/16 in
Manufacturers Warranty Length
1 yr
Overall Length
10 1/16 in
Body Dia.
6 7/16 in
Shaft Length
1 7/8 in
Description
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 1.1/2.3-2.2 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
