  6. Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM

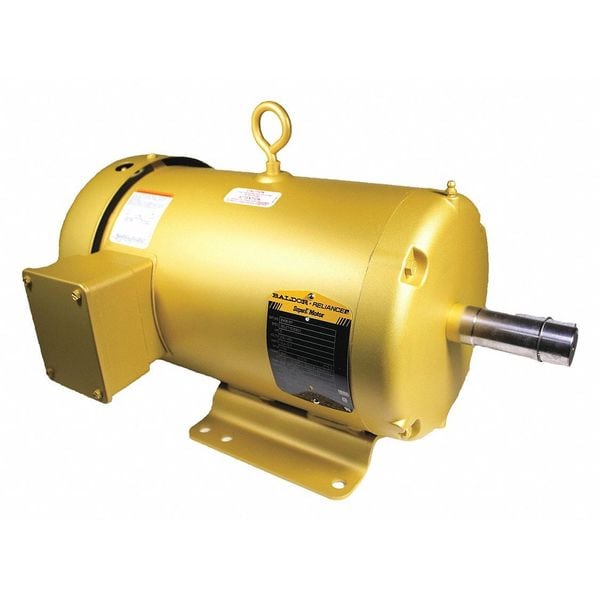

Baldor-Reliance Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM EM3615T - main

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM

  • Mfr # EM3615T

  • Zoro # G5145445

product price:  $988.99
/ea
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
1750 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.4/6.7 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EM3615T
Zoro #
G5145445
UPC #
781568138991
Country of Origin
United States

Dimensions

Length Less Shaft
15 5/16 in
Overall Length
18 1/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
1750 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.4/6.7 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 208V
Yes
Weight
91 lb
Duty Cycle
Continuous
Usable @ 200V
No

Description

Here is the revised description:

The BALDOR-RELIANCE - EM3615T is a General Purpose Motor that falls under the category of 3-Phase AC Motors. This motor is designed to convert electrical energy into mechanical energy, making it suitable for power transmission and pneumatics applications in various industrial and commercial settings. Its versatility allows it to be used across different sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - EM3615T General Purpose Motor:

  • CC Number: The unique identifier assigned by EASA, CC031A, classifies this motor based on its design and performance characteristics.
  • Duty Cycle: Its continuous duty cycle is designed for use in industrial applications.
  • Frame: The 184T frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility.
  • Full Load Amps: Draws a maximum current of 13.4/6.7 A when operating at full capacity within specified parameters.
  • NEMA Premium(R) Rated: Acknowledged as meeting certain environmental and energy efficiency standards making it an eco-friendly choice.
  • Inverter Rated: Designed to be powered by a variable frequency drive allowing precise control over speed and torque
  • Motor Bearings: Ball bearings are incorporated to potentially reduce friction between moving parts, intended for operation under various load conditions
