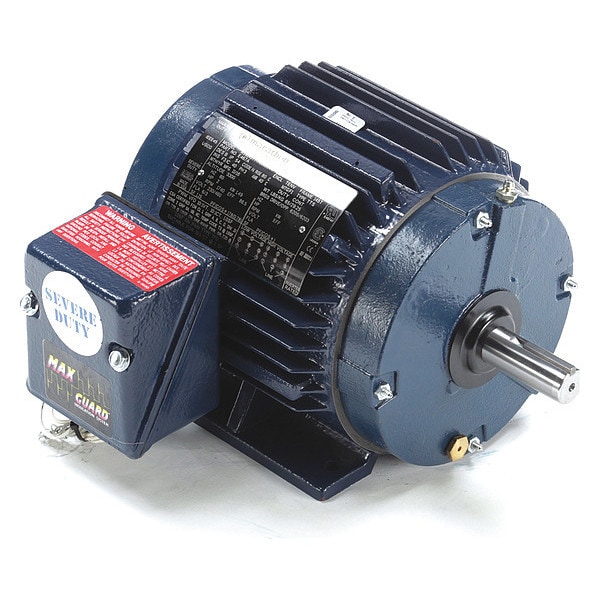

Three-Phase Severe Duty Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1740 rpm Nameplate RPM

  • Mfr # 145TTTN16628

  • Zoro # G7410037

product price:
$
650.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1740 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.0/3.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
145TTTN16628
Zoro #
G7410037
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
9 3/16 in
Overall Length
11 7/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
1 yr
Frame Size
145T
Shaft Diameter
7/8 in
Wire Rope Length
11 7/16 in
Length
11 7/16 in

Details

Item
Severe Duty Motor
HP
2
Nameplate RPM
1740 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6.0/3.0 A
Frame
145T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Weight
65 lb
Product Type
Severe Duty Motor
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Nameplate RPM @ 50 Hz
1,470/1,475 RPM
Frequency
60 Hz
Mounting Position
Horizontal
Application
General Purpose
Shaft Design
Keyed
Efficiency Rating
NEMA Premium Efficiency
Full Load Current @ 60 Hz
6.0/3.0 A
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
1 yr
Inverter Rating
Inverter Rated
Number of Speeds
1
Nameplate Voltage @ 50 Hz
190-220/380/415V AC
Bearing Type
Ball

Description

Severe Duty Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 2 HP, Nameplate RPM 1740 rpm, Frame 145T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 6.0/3.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800
