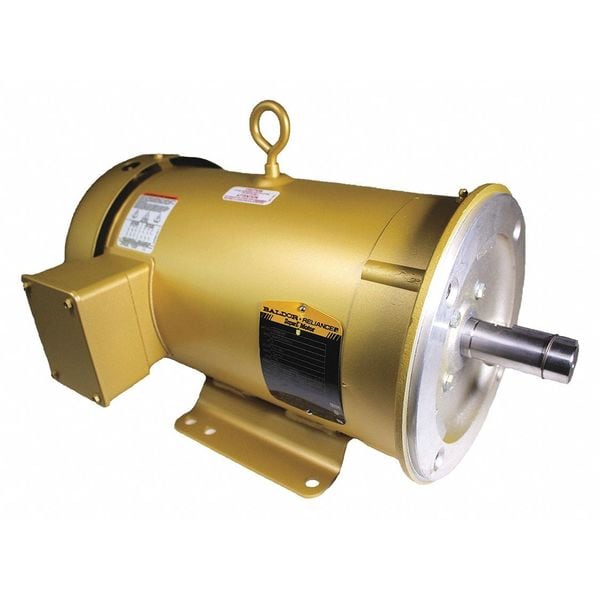

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage

  • Mfr # CEM3615T

  • Zoro # G8085585


product price:  $1,210.99
/ea
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
1750 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
13.4/6.7 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CEM3615T
Zoro #
G8085585
UPC #
781568422786
Country of Origin
United States

Dimensions

Length Less Shaft
15 7/16 in
Overall Length
18 1/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 11/16 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
1750 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
13.4/6.7 A
Frame
184TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Motor Thermal Protection
None
Includes
Conduit Box
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
92 lb
Usable @ 200V
No
Usable @ 208V
Yes
NEMA Design
B
Duty Cycle
Continuous

Description

The BALDOR-RELIANCE - CEM3615T is a 3-phase AC General Purpose Motor, primarily used in industrial and commercial settings. This motor converts electrical energy into mechanical energy to operate various types of machinery. Its versatile design allows it to be utilized across different sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - CEM3615T:

  • CC Number: The unique identifier assigned by EASA for tracking based on design, specifications, and performance characteristics.
  • Duty Cycle: The product is designed for continuous operation, subject to the specifications provided.
  • Frame: 184TC frame size conforms to standard specifications for compatibility and interchangeability.
  • Full Load Amps: Draws a maximum current of 13.4/6.7 A when operating at full capacity.
  • NEMA Premium(R) Rated: Acknowledges that the motor meets certain environmental and energy efficiency standards.
  • Inverter Rated: Intended for use with a variable frequency drive as per manufacturer's guidelines
  • Motor Bearings: Ball bearings are included, which are intended to help reduce friction between moving parts according to design specifications.
  • Motor Enclosure Design: Features a totally enclosed fan-cooled design as per standard industry norms
