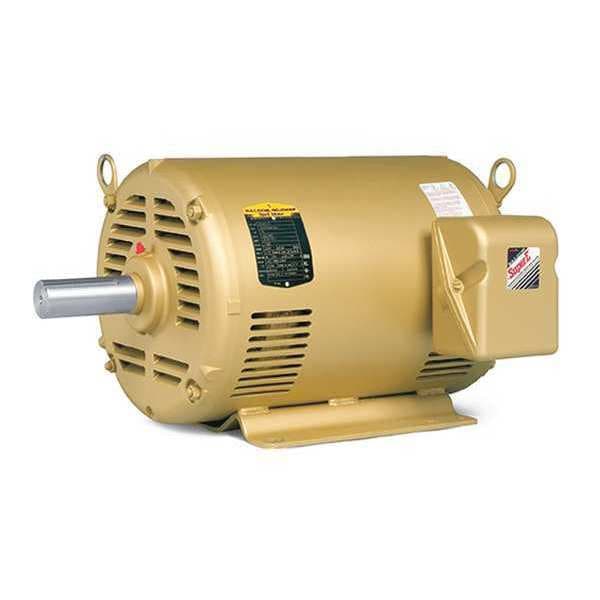

Baldor-Reliance Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM EFM3311T - main

Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # EFM3311T

  • Zoro # G8381493

product price:  $1,800.99
/ea
Free Shipping & Returns

Key Features

HP
7 1/2
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
19.4/9.7 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EFM3311T
Zoro #
G8381493
UPC #
781568173268
Country of Origin
United States

Dimensions

Length Less Shaft
12 15/16 in
Overall Length
16 5/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 7/16 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 3/8 in
Frame Size
213T

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
19.4/9.7 A
Frame
213T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Includes
Conduit Box
Footnotes
1, 30
Inverter Rated
Yes
Motor Thermal Protection
None
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
118 lb
Usable @ 208V
Usable at 208V
NEMA Design
B
Inverter Rating
Inverter Rated
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Full Load Current @ 60 Hz
19.4/9.7 A
Bearing Type
Ball
Manufacturers Warranty
3 yr
Nameplate RPM @ 50 Hz
2895/2905 RPM
Shaft Design
Keyed
Number of Speeds
1
Nameplate Voltage @ 50 Hz
190/380V AC, 220/415V AC
NEMA Design Class
B
Motor Enclosure Type
Open Drip Proof
Insulation Class
F

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,770, Frame 213T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 19.4/9.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
