Shop CENTURY

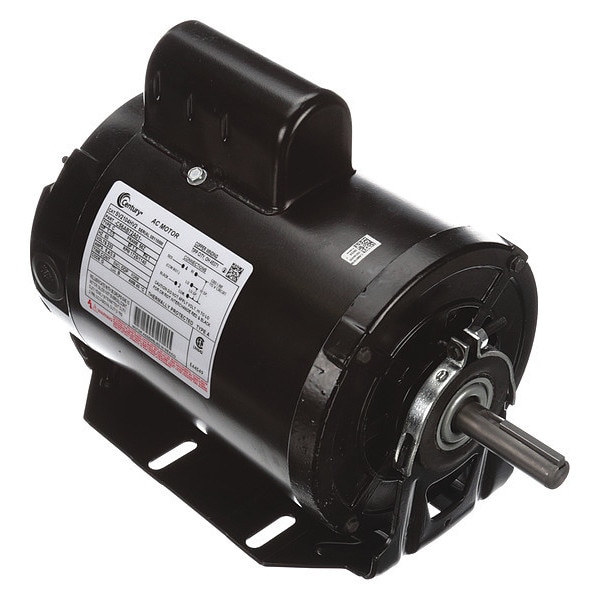

Evaporative Cooler Motor, 1 1/3 hp

  • Mfr # SV2104HV2

  • Zoro # G0528315

product price:
$
400.99
/ea
Free Shipping & Returns

Key Features

Voltage
230V AC
Motor Enclosure Design
Open
RPM Range
1,701-1,800
HP
1 1/3
Full Load Amps
6.4/3.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SV2104HV2
Zoro #
G0528315
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
12 1/16 in
Shaft Dia.
5/8 in
Ring Dia.
2 1/2 in
Shaft Length
2 1/8 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
9 15/16 in
Body Dia.
6 1/2 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Frame Size
56Z
Resilient Ring Diameter
2 1/2 in
Wire Rope Length
12 1/16 in
Length
12 1/16 in

Details

Item
Evaporative Cooler Motor
Voltage
230V AC
Motor Enclosure Design
Open
RPM Range
1,701-1,800
HP
1 1/3
Full Load Amps
6.4/3.9 A
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Capacitor-Start
Hz
60 Hz
No. of Speeds
2
Frame
56Z
Motor Application
HVAC/R
Nameplate RPM
1,725/1,140
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Ins. Class
B
Ambient Temperature
40 Degrees C
Motor Bearings
Sleeve
Motor Sub Application
Evaporator Cooler
Motor Mounting Type
Cradle Base
Standards
CSA
Ring to Ring Center
7 1/2 in
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Weight
33 lb
Motor Mounting Position
All Angle
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Output Watts
750 W
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Features
Auto Protector, Brass Current Carrying, Continuous Filtration of Oil, Dust Caps and Terminal Board Cover, Electro Zin Encapsulating Varnish, Electro Zinc Plated Governor Parts, Heavy Magnet Wire Insulation, Moisture Resistant Terminal Board
Number of Speeds
2
Shaft Design
Keyed
Product Type
Evaporative Cooler Motor
Insulation Class
B
Motor Enclosure Type
Open
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Application
Evaporative Cooler
Drive Type
Direct Drive
Sub Application
Evaporative Cooler
Capacitor Required
Capacitor Included
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Wattage
750 W
Full Load Current @ 60 Hz
6.4/3.9 A

Description

Evaporative Cooler Motor, Single Phase, Motor Design Capacitor-Start, 1 1/3 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 230V AC, 6.4/3.9 A Full Load Amps, 56Z Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Cradle Base
