  6. Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM

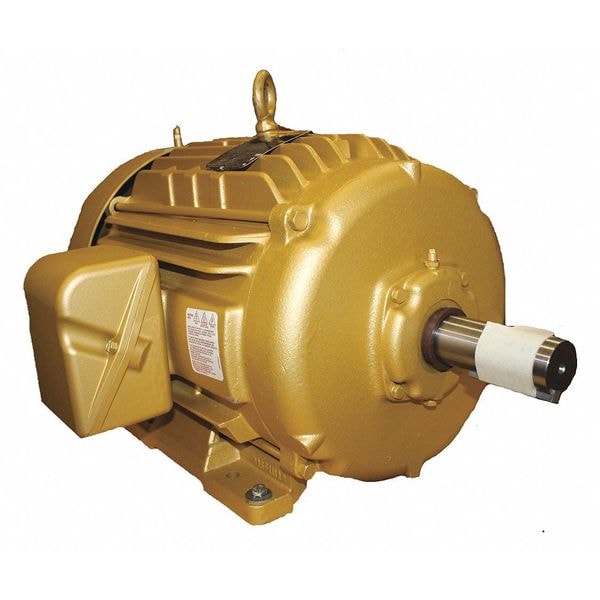

Baldor-Reliance Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM EM2276T - main

Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM

  • Mfr # EM2276T

  • Zoro # G9818943

product price:  $3,209.99
/ea
Item requires special delivery charges. A $140.00 per item surcharge will be applied.

Key Features

HP
7 1/2
Nameplate RPM
1180 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
22.0/11.0 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EM2276T
Zoro #
G9818943
UPC #
781568102770
Country of Origin
United States

Dimensions

Length Less Shaft
19 1/4 in
Overall Length
23 1/4 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
1180 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
22.0/11.0 A
Frame
254T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
91 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Gasketed Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 208V
No
Duty Cycle
Continuous
Usable @ 200V
No
Weight
298 lb

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1180 rpm, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 22.0/11.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 1,101-1,200
