Dayton

Split-Phase Belt Drive Motor, 1/4 HP, 48 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

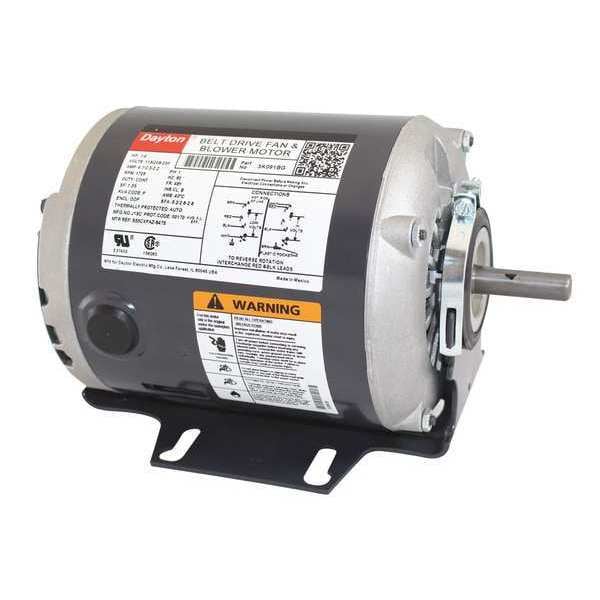

Dayton Split-Phase Belt Drive Motor,  1/4 HP,  48 Frame,  115/208-230V AC Voltage,  1,725 Nameplate RPM 3K091
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$112.59
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.
Total: $112.59

Dayton #3K091 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/4
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115/208-230V AC
  • Frame: 48
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 1/2 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.35
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Body Dia.: 5 5/8 in
  • Hz: 60
  • Overall Length: 9 7/16 in
  • Frame Material: Rolled steel
  • Ins. Class: B
  • Motor Shaft Design: Flat
  • Ring to Ring Center: 7 7/16 in
  • Length Less Shaft: 7 15/16 in
  • Motor Shaft Rotation: CW/CCW
  • Standards: UL Recognized (E37403) and CSA Certified (258501)
  • Motor Bearings: Ball
  • Motor Mounting Position: All Angle
  • Footnotes: Notched for 48 or 56 frame mount.
  • Shaft Length: 1 1/2 in
  • Motor Frame Material: Rolled Steel
  • Full Load Amps: 4.7/2.3-2.2
  • Resilient Ring Dia.: 2 1/2 in
  • Max. Ambient Temp.: 40 Degrees C
  • Duty: Continuous
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Multiple
Feedback Help us improve our product information

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 4.7/2.3-2.2 Full Load Amps, 48 Frame, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in
