Balston

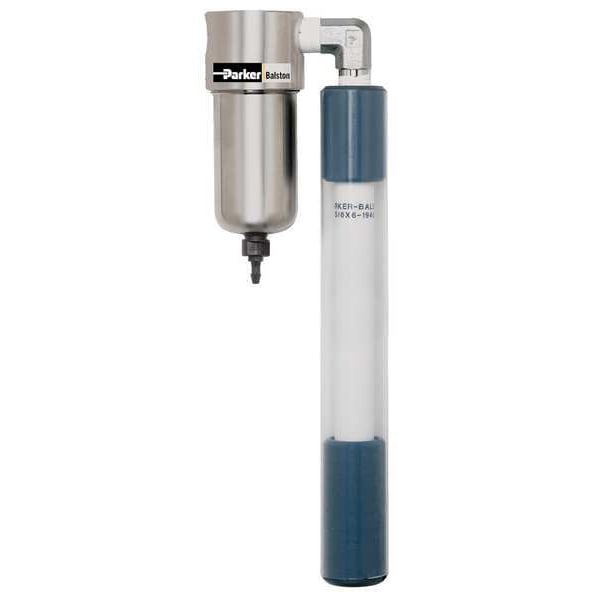

Air Dryer, CFM 0.6

original price: $917.28
13% off
new price: $796.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • ISO Class 1, 2, 4
  • CFM 0.6
  • Dew Point (Deg. F) -7
  • Max. Air Compressor HP 1 hp
  • Width (In.) 3 in
See all product information

Product Information

Dimensions

Width (In.) 3 in
Height (In.) 9.2 in
Overall Depth 1 7/8 in
Air Outlet Size 1/4 in
Drain Port Size 1/8 in
Overall Width 3 in
Air Inlet Size 1/4 in
Overall Height 9 1/4 in

Details

ISO Class 1, 2, 4
CFM 0.6
Dew Point (Deg. F) -7
Max. Air Compressor HP 1 hp
Bracket Kit Included
Item Membrane Air Dryer
Type Membrane
Max. Inlet Temp. (Deg. F) 120 Degrees F
Max. Pressure (PSI) 150 psi
Max. Ambient Temp. (F) 130 Degrees F
Filter BX
Features Corrosion Resistant
Inlet/Outlet (In.) 1/4 in
Series ECD
Includes Mounting Brackets, Strain Relief Bushing, Warranty and Manual
Filter Rating 0.01 micron
Standards ISO 9001:2008
Dew Point -7 Degrees F
Minimum Operating Pressure 60 psi
Maximum Operating Temperature 120 Degrees F
Filtered Substance Oil, Particulate, Water
For Maximum Compressor Output Power 1 hp
Air Inlet Type NPT
Drain Type Automatic
Filter Element Compatibility 070-063-BX, A01-0367, A05-0096, A07-0016, C02-2419, D03-0074
Number of Air Inlets 1
Maximum Operating Pressure 150 psi
Drain Port Connection Style Barb
Drain Included Yes
Body Material Stainless Steel; FEP; PVC
Maximum Flow Rate 0.6 cfm
Filter Element Life 1 yr
Filter Included 21GR10
Number of Air Outlets 1
Minimum Operating Temperature 3 Degrees F
Maximum Ambient Temperature 130 Degrees F
Bracket Kit Included Yes
Minimum Flow Rate 0.6 cfm
Filter Type Coalescing
Air Outlet Type NPT

Description

Membrane Air Dryer, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 0.6 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 120 Degrees F, Maximum Ambient Temperature 130 Degrees F, Drain Type Automatic, ISO Class 1, 2, 4, Dew Point -7 Degrees F, Overall Width 3 in, Overall Height 9 1/4 in, Series ECD, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Stainless Steel; FEP; PVC, Bracket Kit Included Yes, Drain Included Yes, Drain Port Connection Style Barb
