Shop All Membrane Air Dryers
Balston

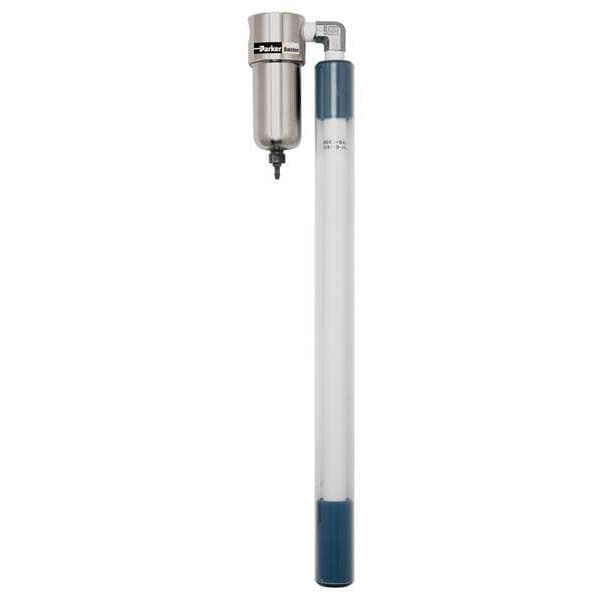

Air Dryer, CFM 1.25

product price: $928.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • ISO Class 1, 2, 4
  • CFM 1.25
  • Dew Point (Deg. F) -7
  • Max. Air Compressor HP 1 hp
  • Features Corrosion Resistant
See all product information

Product Information

Dimensions

Height (In.) 15.2 in
Width (In.) 3 in
Overall Height 15 1/4 in
Air Outlet Size 1/4 in
Drain Port Size 1/8 in
Overall Width 3 in
Air Inlet Size 1/4 in
Overall Depth 1 7/8 in

Details

ISO Class 1, 2, 4
CFM 1.25
Dew Point (Deg. F) -7
Max. Air Compressor HP 1 hp
Features Corrosion Resistant
Inlet/Outlet (In.) 1/4 in
Item Membrane Air Dryer
Max. Ambient Temp. (F) 130 Degrees F
Filter BX
Series ECD
Max. Inlet Temp. (Deg. F) 120 Degrees F
Max. Pressure (PSI) 150 psi
Includes Mounting Brackets, Strain Relief Bushing, Warranty and Manual
Bracket Kit Included
Type Membrane
Number of Air Inlets 1
Minimum Flow Rate 1.25 cfm
Minimum Operating Pressure 60 psi
Maximum Operating Pressure 150 psi
Number of Air Outlets 1
Filter Element Compatibility 070-063-BX, A01-0367, A05-0096, A07-0016, C02-2419, D03-0074
Filter Type Coalescing
Body Material Stainless Steel; FEP; PVC
Filtered Substance Oil, Particulate, Water
Bracket Kit Included Yes
Air Outlet Type NPT
Minimum Operating Temperature 3 Degrees F
Drain Port Connection Style Barb
Drain Included Yes
Maximum Operating Temperature 120 Degrees F
Dew Point -7 Degrees F
Drain Type Automatic
For Maximum Compressor Output Power 1 hp
Air Inlet Type NPT
Maximum Ambient Temperature 130 Degrees F
Maximum Flow Rate 1.25 cfm
Filter Included 21GR10
Filter Rating 0.01 micron
Filter Element Life 1 yr

Description

Membrane Air Dryer, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 1.25 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 120 Degrees F, Maximum Ambient Temperature 130 Degrees F, Drain Type Automatic, ISO Class 1, 2, 4, Dew Point -7 Degrees F, Overall Width 3 in, Overall Height 15 1/4 in, Series ECD, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Stainless Steel; FEP; PVC, Bracket Kit Included Yes, Drain Included Yes
