Banjo

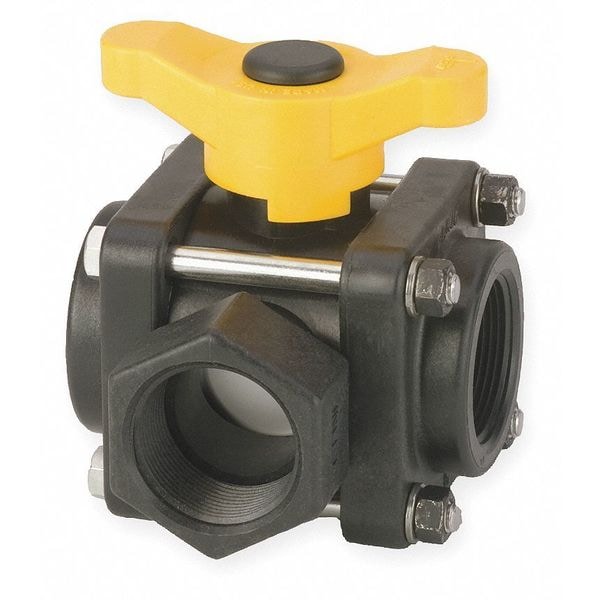

1-1/2" FNPT Polypropylene Ball Valve 3-Way

product price: $69.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Polypropylene
  • Body Style Inline Single Union
  • Temp. Range -20 Degrees to 150 Degrees F
  • Seat Material PTFE
  • Body Seal Material EPDM
See all product information

Product Information

  • Brand Banjo
  • MFR # V150SL
  • Zoro # G1972652
  • UPC #
    791206021974
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 1 1/2"
Overall Length 4.66 in
Inlet Connection Size 1 1/2 in
Outlet Connection Size - Side 2 1 1/2 in
Handle Length 4.41 in
Nominal Valve Size 1 1/2 in
Outlet Connection Size - Side 1 1 1/2 in

Details

Body Material Polypropylene
Body Style Inline Single Union
Temp. Range -20 Degrees to 150 Degrees F
Seat Material PTFE
Body Seal Material EPDM
Connection Type FNPT x FNPT
Ball Material Polypropylene
Handle Material Polypropylene
Ball Valve Basic Body Material Plastic
Ball Valve Product Group Manual
Max. Pressure 100 psi CWP
Stem Material Polypropylene
Handle Type Lever
Valve Structure 1-Piece
Port Full
Item Ball Valve
Seal Material FKM
Stem Type Self-Lubricating
Type Three Piece, Three Way
Connection FNPT
Material of Construction Polypropylene
Sub-Category Synthetic Ball Valves
Inlet Connection Gender Female
Inlet Connection Type NPT
Color - Valve Handle Yellow
Outlet Connection Gender - Side 2 Female
Maximum Pressure - Operating 225 psi
Vented Ball Valve Non-Vented
Operating Temperature - Minimum -20 Degrees F
Coefficient of Volume (Cv) Not Available
Outlet Connection Gender - Side 1 Female
Outlet Connection Type - Side 2 NPT
Outlet Connection Type - Side 1 NPT
Inlet Connection Entry Side
Maximum Pressure - Steam Not Rated
Valve Construction Three-Piece
3-A Standard Compliance Not Rated
Handle - Locking Non-Locking
Vacuum Service Rating Not Available
Maximum Pressure - Combustible Gas Not Rated
Ball Port Style Full Port
Valve Ways 3-Way
Operating Temperature - Maximum 150 Degrees F
For Media Water
Flow Pattern L Flow

Description

Manual Three-Way Ball Valve, Body Material Polypropylene, Valve Construction Three-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern L Flow, 3-A Standard Compliance Not Rated, Ball Port Style Full Port, Nominal Valve Size 1 1/2 in, Inlet Connection Size 1 1/2 in, Inlet Connection Gender Female, Inlet Connection Type NPT, Inlet Connection Entry Side, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 1 1/2 in, Outlet Connection Gender - Side 1 Female
