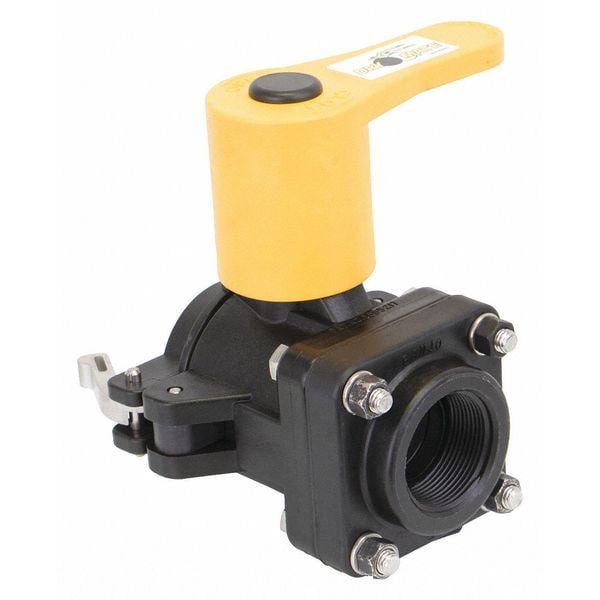

Banjo 1-1/2" Male, Dry Mate DM150A - main

1-1/2" Male, Dry Mate

  • Mfr # DM150A

  • Zoro # G0577346

product price: $195.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Polypropylene
Max. Pressure
100 psi
Body Style
Male
Overall Length
4.34 in
Features
Easy to Use, Economical, Lightweight, Minimal Fluid Spillage, Reduces Risk of Exposure, Spillage Data- 1 1/2 in Dash - 2 ml, Unrestricted 1 1/2 in Flow, When Properly Installed and Operated, the Assembly Will Not Accidentally Separate While Fluid is Flowing- Preventing Costly Mishaps, Wide Range of Chemical Resistance
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DM150A
Zoro #
G0577346
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
4.34 in
Pipe Size
1 1/2 in
Connection Size - Side 2
1 1/2 in
Connection Size - Side 1
1 1/2 in
Handle Height
5.06 in
Handle Length
4.38 in
Nominal Valve Size
1 1/2 in

Details

Housing Material
Polypropylene
Item
Manual Two-Way Ball Valve
Max. Pressure
100 psi
Body Style
Male
Features
Easy to Use, Economical, Lightweight, Minimal Fluid Spillage, Reduces Risk of Exposure, Spillage Data- 1 1/2 in Dash - 2 ml, Unrestricted 1 1/2 in Flow, When Properly Installed and Operated, the Assembly Will Not Accidentally Separate While Fluid is Flowing- Preventing Costly Mishaps, Wide Range of Chemical Resistance
Body Material
Polypropylene
Body Seal Material
FKM
Handle Type
Lever
Connection Type
MNPT
Temp. Range
-20 Degrees to 150 Degrees F
Seat Material
PTFE
Connection Gender - Side 1
Male
Connection Type - Side 1
NPT
Handle - Locking
Locking
Valve Ways
2-Way
Ball Material
Polypropylene
Maximum Pressure - Steam
Not Rated
Connection Type - Side 2
NPT
Color - Valve Handle
Yellow
Operating Temperature - Minimum
-20 Degrees F
Seal Material
FKM
3-A Standard Compliance
Not Rated
Maximum Pressure - Combustible Gas
Not Rated
Stem Type
Not Available
Handle Material
Polypropylene
For Media
Corrosive Chemicals, Water
Vacuum Service Rating
Not Available
Maximum Pressure - Operating
100 psi
Ball Port Style
Full Port
Connection Gender - Side 2
Female
Operating Temperature - Maximum
150 Degrees F
Valve Construction
Two-Piece
Valve Body Style
Straight
Vented Ball Valve
Non-Vented
Stem Material
Polypropylene
Coefficient of Volume (Cv)
Not Available

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction Two-Piece, Nominal Valve Size 1 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 100 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Full Port, Handle - Locking Locking
