  11. Check Valve, 2.28125 in Overall L

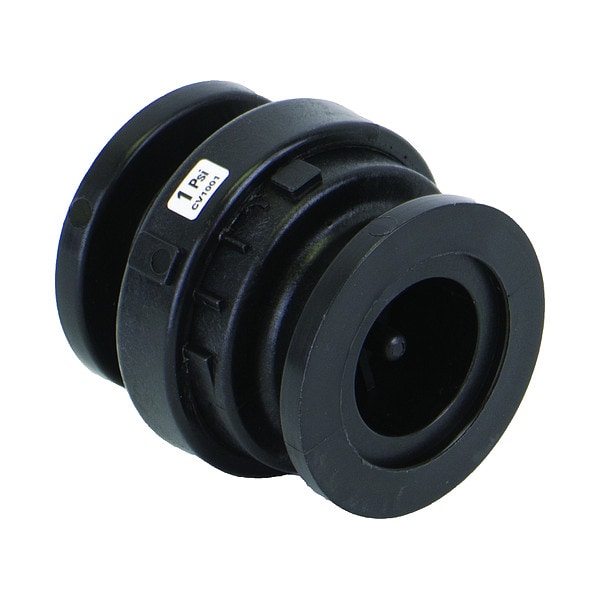

Banjo Check Valve, 2.28125 in Overall L MCV100 - main

Check Valve, 2.28125 in Overall L

  • Mfr # MCV100

  • Zoro # G808446472

product price: $16.69
/ea

Key Features

Hex Size
2 1/2 in
Connection Type
Flanged
Body Material
Glass-Filled Polypropylene
Length
2 9/32 in
Mechanism and Body Design
Inline Spring
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MCV100
Zoro #
G808446472
UPC #
0791206061222
Country of Origin
United States

Dimensions

Hex Size
2 1/2 in
Length
2 9/32 in
Overall Length
2.28 in
Overall Height
2 1/2 in
Width
2 3/8 in
Pipe or Tube Size
1 in
Nominal Valve Size
1 in
Connection Size - Side 1
1 in
Connection Size - Side 2
1 in

Details

Connection Type
Flanged
Body Material
Glass-Filled Polypropylene
Mechanism and Body Design
Inline Spring
Item - Check Valves
Check Valve
Spring Material
316 Stainless Steel
Flow
85 gpm
Max. Water Pressure - Valves
300 psi
Body Material - Valves
Polypropylene
Cracking Pressure
1 psi
Seal Material
EPDM
Standards
None
Item
Check Valve
Valve Body Style
Inline
Operating Temperature - Maximum
150 Degrees F
Silent Check
Standard
Maximum Pressure - Operating
300 psi
NSF Certifications for Food and Drinking Water
Not Rated
Mounting Orientation
Horizontal, Vertical
Includes Counterweight
No Counterweight
Vacuum Service Rating
Not Rated
Connection Type - Side 1
Flange
Operating Temperature - Minimum
0 Degrees F
3-A Standard Compliance
Not Rated
For Media
Water
Check Mechanism
Poppet
Connection Type - Side 2
Flange
Maximum Pressure - Steam
Not Rated
Check Mechanism Material
316 Stainless Steel
Valve Series
Check Valve

Description

Check Valve
