  11. Check Valve, 3 in Overall L

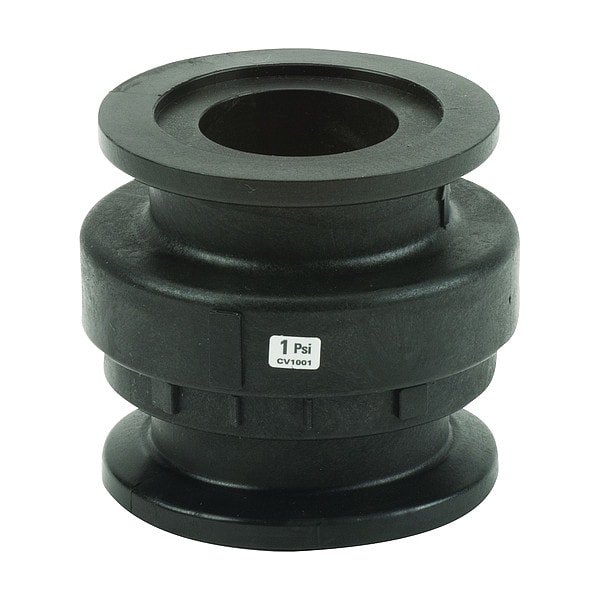

Banjo Check Valve, 3 in Overall L MCV200 - main

Check Valve, 3 in Overall L

  • Mfr # MCV200

  • Zoro # G508446482

product price: $21.99
/ea

Key Features

Hex Size
3 9/16 in
Connection Type
Flanged
Body Material
Glass-Filled Polypropylene
Body Material - Valves
Polypropylene
Item - Check Valves
Check Valve
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MCV200
Zoro #
G508446482
UPC #
0791206061239
Country of Origin
United States

Dimensions

Hex Size
3 9/16 in
Overall Length
3 in
Overall Height
3 17/32 in
Width
3 13/32 in
Length
3 in
Pipe or Tube Size
2 in
Connection Size - Side 2
2 in
Connection Size - Side 1
2 in
Nominal Valve Size
2 in

Details

Connection Type
Flanged
Body Material
Glass-Filled Polypropylene
Body Material - Valves
Polypropylene
Item - Check Valves
Check Valve
Item
Check Valve
Spring Material
316 Stainless Steel
Flow
152 gpm
Standards
None
Mechanism and Body Design
Inline Spring
Seal Material
EPDM
Cracking Pressure
0.5 psi
Connection Type - Side 1
Flange
Check Mechanism
Poppet
Check Mechanism Material
316 Stainless Steel
Mounting Orientation
Horizontal, Vertical
NSF Certifications for Food and Drinking Water
Not Rated
Connection Type - Side 2
Flange
Maximum Pressure - Steam
Not Rated
Valve Body Style
Inline
Operating Temperature - Minimum
0 Degrees F
Includes Counterweight
No Counterweight
Vacuum Service Rating
Not Rated
Operating Temperature - Maximum
150 Degrees F
For Media
Water
Maximum Pressure - Operating
300 psi
3-A Standard Compliance
Not Rated
Silent Check
Standard
Valve Series
Check Valve

Description

Check Valve

Restrictions
