  11. Check Valve, 4.78125 in Overall L

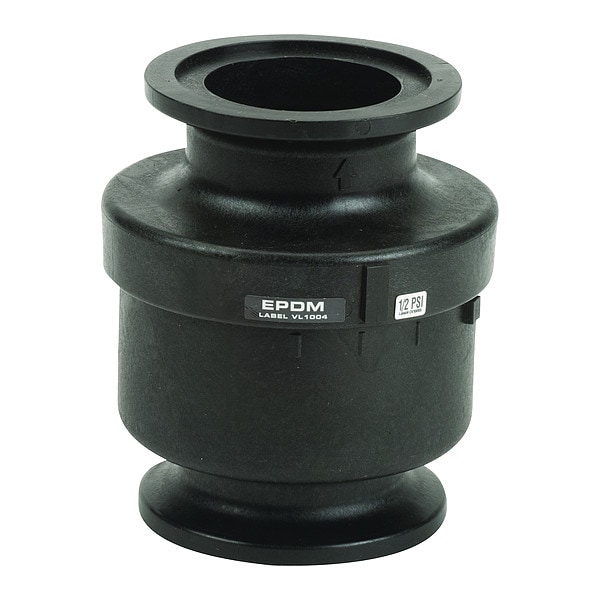

Banjo Check Valve, 4.78125 in Overall L MCV221 - main

Check Valve, 4.78125 in Overall L

  • Mfr # MCV221

  • Zoro # G608446481

product price: $27.69
/ea

Key Features

Connection Type
Flanged
Body Material
Glass-Filled Polypropylene
Mechanism and Body Design
Inline Spring
Seal Material
EPDM
Width
4 3/32 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MCV221
Zoro #
G608446481
UPC #
0791206079487
Country of Origin
United States

Dimensions

Width
4 3/32 in
Overall Height
4 3/32 in
Overall Length
4.78 in
Length
4 25/32 in
Pipe or Tube Size
2 in
Nominal Valve Size
2 in
Connection Size - Side 2
2 in
Connection Size - Side 1
2 in

Details

Connection Type
Flanged
Body Material
Glass-Filled Polypropylene
Mechanism and Body Design
Inline Spring
Seal Material
EPDM
Item - Check Valves
Check Valve
Body Material - Valves
Polypropylene
Flow
377 gpm
Standards
None
Cracking Pressure
0.5 psi
Max. Water Pressure - Valves
200 psi
Spring Material
316 Stainless Steel
Item
Check Valve
Vacuum Service Rating
Not Rated
Maximum Pressure - Operating
200 psi
Mounting Orientation
Horizontal, Vertical
Includes Counterweight
No Counterweight
Operating Temperature - Minimum
0 Degrees F
Check Mechanism
Poppet
Valve Body Style
Inline
Connection Type - Side 2
Flange
Check Mechanism Material
316 Stainless Steel
Connection Type - Side 1
Flange
For Media
Water
Operating Temperature - Maximum
150 Degrees F
NSF Certifications for Food and Drinking Water
Not Rated
Silent Check
Standard
Maximum Pressure - Steam
Not Rated
3-A Standard Compliance
Not Rated
Valve Series
Check Valve

Description

Check Valve

Restrictions
