Shop All Ball Valves
Banjo

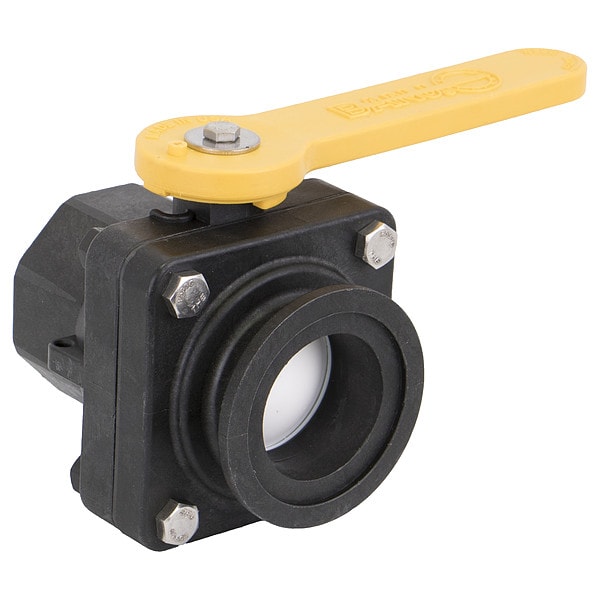

Manual 2-Way Ball Valve, Flange, Polypro

product price: $80.75
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 2 in
  • Body Material Polypropylene
  • Body Style Stubby
  • Body Seal Material FKM
  • Overall Length 5.03 in
See all product information

Product Information

  • Brand Banjo
  • MFR # MVS220FP
  • Zoro # G808446854
  • UPC #
    0791206008593
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 2 in
Overall Length 5.03 in
Nominal Valve Size 2 in
Connection Size - Side 2 2 in
Connection Size - Side 1 2 in
Handle Length 2 in
Handle Height 3.13 in

Details

Body Material Polypropylene
Body Style Stubby
Body Seal Material FKM
Connection Type Flanged x FNPT
Max. Pressure 300 psi
Features Ball is Diamond Turned, after Molding, to Make it Spherically Perfect, which Provides Precise Contact Between Ball and Seats, Stainless Steel Bolts, The Valve Opens and Closes with Very Little Pressure on the Handle
Handle Type Lever
Item Manual Two-Way Ball Valve
Special Features Stubby Valve
Port Full
Stem Type Self-Lubricating
Stem Material Polypropylene
Ball Material Polypropylene
Seal Material FKM
Seat Material PTFE
Handle Material Polypropylene
3-A Standard Compliance Not Rated
Maximum Pressure - Operating 300 psi
Operating Temperature - Minimum 0 Degrees F
Connection Gender - Side 2 Female
Color - Valve Handle Yellow
Operating Temperature - Maximum 150 Degrees F
Valve Body Style Straight
Ball Port Style Full Port
For Media Corrosive Chemicals, Water
Vented Ball Valve Non-Vented
Vacuum Service Rating Not Available
Coefficient of Volume (Cv) Not Available
Connection Type - Side 1 Manifold Flange
Handle - Locking Non-Locking
Maximum Pressure - Combustible Gas Not Rated
Valve Construction Two-Piece
Connection Type - Side 2 NPT
Valve Ways 2-Way

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 300 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Full Port
