Banjo

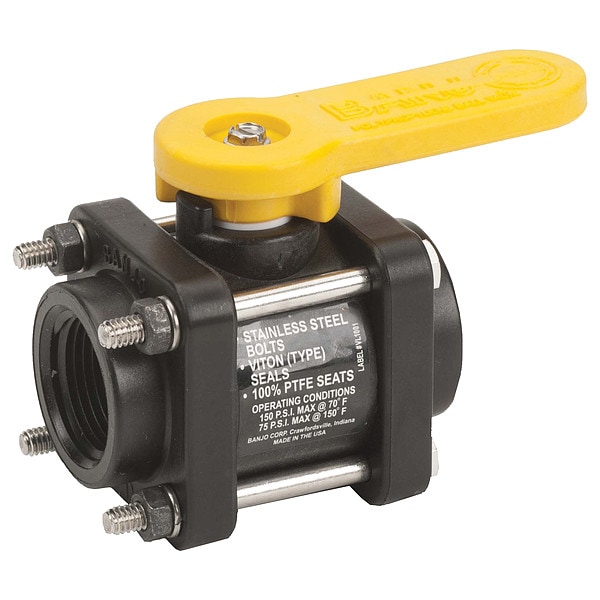

Manual 2-Way Ball Valve, NPT, Polypro

product price: $37.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1 in
  • Body Material Polypropylene
  • Body Style Bolted
  • Ball Material Polypropylene
  • Features Ball is Diamond Turned, after Molding, to Make it Spherically Perfect, which Provides Precise Contact Between Ball and Seats, Stainless Steel Bolts, The Valve Opens and Closes with Very Little Pressure on the Handle
See all product information

Product Information

  • Brand Banjo
  • MFR # V100
  • Zoro # G308446903
  • UPC #
    0791206021110
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 1 in
Overall Length 3.5 in
Nominal Valve Size 1 in
Handle Length 3.31 in
Handle Height 1.59 in
Connection Size - Side 2 1 in
Connection Size - Side 1 1 in

Details

Body Material Polypropylene
Body Style Bolted
Ball Material Polypropylene
Features Ball is Diamond Turned, after Molding, to Make it Spherically Perfect, which Provides Precise Contact Between Ball and Seats, Stainless Steel Bolts, The Valve Opens and Closes with Very Little Pressure on the Handle
Max. Pressure 225 psi
Seal Material FKM
Port Standard
Body Seal Material FKM
Stem Type Self-Lubricating
Item Manual Two-Way Ball Valve
Handle Type Lever
Seat Material PTFE
Handle Material Polypropylene
Connection Type FNPT x FNPT
Stem Material Polypropylene
Maximum Pressure - Operating 225 psi
Operating Temperature - Minimum 0 Degrees F
Operating Temperature - Maximum 150 Degrees F
Maximum Pressure - Combustible Gas Not Rated
Handle - Locking Non-Locking
Valve Ways 2-Way
Valve Body Style Straight
For Media Corrosive Chemicals, Water
Connection Gender - Side 1 Female
Vacuum Service Rating Not Available
Coefficient of Volume (Cv) Not Available
Valve Construction Three-Piece
Connection Type - Side 2 NPT
Connection Type - Side 1 NPT
Color - Valve Handle Yellow
Vented Ball Valve Non-Vented
Connection Gender - Side 2 Female
Ball Port Style Standard Port
3-A Standard Compliance Not Rated

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction Three-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 225 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Standard Port
