  11. Manual 2-Way Ball Valve, NPT, Polypro

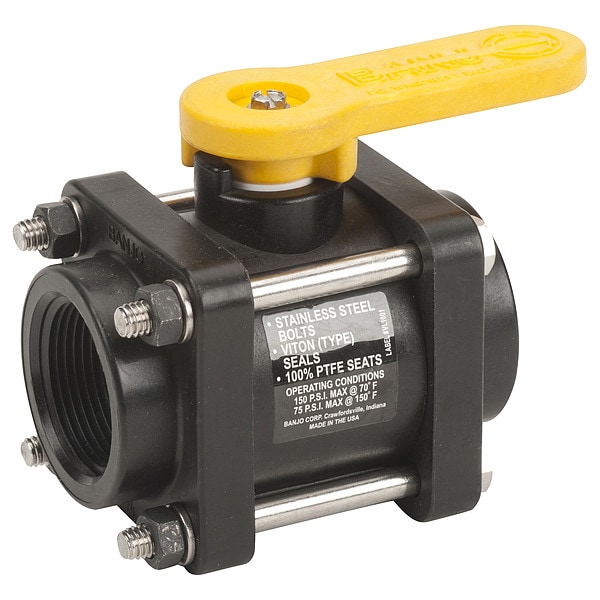

Banjo Manual 2-Way Ball Valve, NPT, Polypro V125 - main

Manual 2-Way Ball Valve, NPT, Polypro

  • Mfr # V125

  • Zoro # G608446887

product price: $37.79
/ea

Key Features

Ball Material
Polypropylene
Body Style
Straight
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V125
Zoro #
G608446887
UPC #
0791206021790
Country of Origin
United States

Dimensions

Pipe Size
1 1/4 in
Overall Length
4.13 in
Connection Size - Side 2
1 1/4 in
Nominal Valve Size
1 1/4 in
Connection Size - Side 1
1 1/4 in

Details

Ball Material
Polypropylene
Body Style
Straight
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Corrosive Chemicals, Water
Connection Type
FNPT x FNPT
Item
Manual Two-Way Ball Valve
Body Material
Polypropylene
Stem Material
Polypropylene
Max. Pressure
300 PSI
Handle Material
Polypropylene
Handle Type
Lever
Seat Material
PTFE
Features
Ball is Diamond Turned, after Molding, to Make it Spherically Perfect, which Provides Precise Contact Between Ball and Seats, Stainless Steel Bolts, The Valve Opens and Closes with Very Little Pressure on the Handle
Seal Material
FKM
Stem Type
Self-Lubricating
Vented Ball Valve
Non-Vented
Connection Gender - Side 2
Female
Color - Valve Handle
Yellow
Operating Temperature - Maximum
150 Degrees F
Connection Gender - Side 1
Female
Handle - Locking
Non-Locking
Coefficient of Volume (Cv)
Not Available
Maximum Pressure - Steam
Not Rated
Connection Type - Side 1
NPT
Maximum Pressure - Combustible Gas
Not Rated
Vacuum Service Rating
Not Available
Operating Temperature - Minimum
0 Degrees F
Connection Type - Side 2
NPT
3-A Standard Compliance
Not Rated

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction Three-Piece, Nominal Valve Size 1 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 300 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Standard Port
