This item is Discontinued.

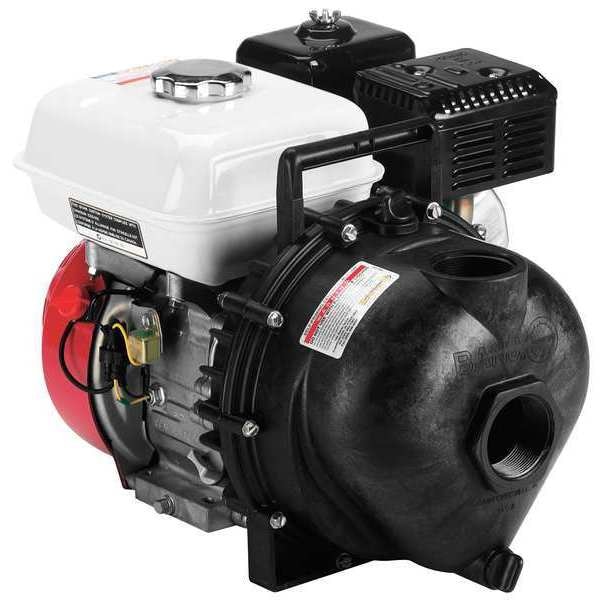

Banjo Pump, Engine Driven, 5-1/2 HP, Poly 200PH-5

Pump, Engine Driven, 5-1/2 HP, Poly (Discontinued)

  • Mfr # 200PH-5
  • Zoro # G3349665
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
200PH-5
Zoro #
G3349665
UPC #
791206032178
Country of Origin
United States

Dimensions

Length
19-1/4"
Width
9"
Engine Size
160 cc
Height
13"
Overall Length
19 1/4 in
Inlet Dia.
2 in
Overall Height
13 in
Discharge Dia.
2 in
Overall Width
9 in
Solids Diameter - Maximum
0 in
Inlet Diameter
2 in
Manufacturers Warranty Length
1 yr
Discharge Diameter
2 in

Details

Impeller Material
Polypropylene
Material of Construction
Polypropylene
Engine/Motor Type
Gas
GPM of Water @ 20 Ft. of Head
190
GPM of Water @ 100 Ft. of Head
78
Engine RPM
3600
Sensor Type
None
Tank Capacity
0.82 gal
Item
Engine Driven Pump
Engine Brand
Honda
Inlet
2 in FNPT
GPM of Water @ 70 Ft. of Head
135
Ignition Type
Recoil-Start
Application
Agricultural
Max. Pressure
55 psi
Check Valve
EPDM
Roll Bar Frame
None
GPM of Water @ 60 Ft. of Head
140
Impeller Type
Open
Number of Impellers
1
HP
5 1/2 hp
GPM of Water @ 80 Ft. of Head
115
Outlet
2" NPT
Volute/Wear Plate
Polypropylene
GPM of Water @ 10 Ft. of Head
200
GPM of Water @ 30 Ft. of Head
180
GPM of Water @ 40 Ft. of Head
160
Max. Head
120 ft
Seal Material
EPDM
GPM of Water @ 90 Ft. of Head
107
Self-Priming
Yes
Temp. Range
32 Degrees to 150 Degrees F
Mechanical Seal
Carbon, Ceramic
Max. Suction Lift
12 ft
Casing Adapter
Polypropylene
Agency Compliance
EPA
GPM of Water @ 50 Ft. of Head
150
Body Material
Polypropylene
RPM
3,600 RPM
Impeller Design
Open
Volute Material
Polypropylene
Discharge
2 in FNPT
Power Source
Gas Engine
Flow Rate @ 60 Ft. of Head
140 gpm
Inlet Standard
NPT
Flow Rate @ 40 Ft. of Head
160 gpm
Flow Rate @ 80 Ft. of Head
115 gpm
Inlet Gender
Female
Maximum Discharge Pressure
55 psi
Frame Material
Polypropylene
Flow Rate @ 10 Ft. of Head
200 gpm
Discharge Standard
NPT
Pump Mechanism
Centrifugal
Flow Rate @ 20 Ft. of Head
190 gpm
Maximum Self-Priming Lift
12 ft
Discharge Gender
Female
Max. Liquid Temp.
150 Degrees F
Frame Design - Pumps
No Frame
Standards
EPA
Includes
None
Self-Priming Lift - Maximum
12 ft
Flow Rate @ 10 ft of Head
200 gpm
Feet of Head - Maximum
120 ft
Liquid Temperature - Maximum
150 Degrees F
Horsepower
5 1/2 hp
Flow Rate @ 20 ft of Head
190 gpm
Discharge Pressure - Maximum
55 psi
Suction Lift - Maximum
12 ft
Engine Series
OBSOLETE
For Media Type
Clear Water
Rotation Speed - Maximum
3,600 RPM
Frame Design
No Frame
Series
200 series Poly

Description

Engine Driven Pump, Engine Size 160 cc, HP 5 1/2 hp, Tank Capacity 0.82 gal, Ignition Type Recoil-Start, Pump Mechanism Centrifugal, Body Material Polypropylene, Volute Material Polypropylene, Seal Material EPDM, Frame Material Polypropylene, Flow Rate @ 10 Ft. of Head 200 gpm, Flow Rate @ 20 Ft. of Head 190 gpm, Flow Rate @ 40 Ft. of Head 160 gpm, Flow Rate @ 60 Ft. of Head 140 gpm, Flow Rate @ 80 Ft. of Head 115 gpm, Max. Head 120 ft, Max. Suction Lift 12 ft, Maximum Self-Priming Lift 12 ft

Restrictions

Hazardous material
