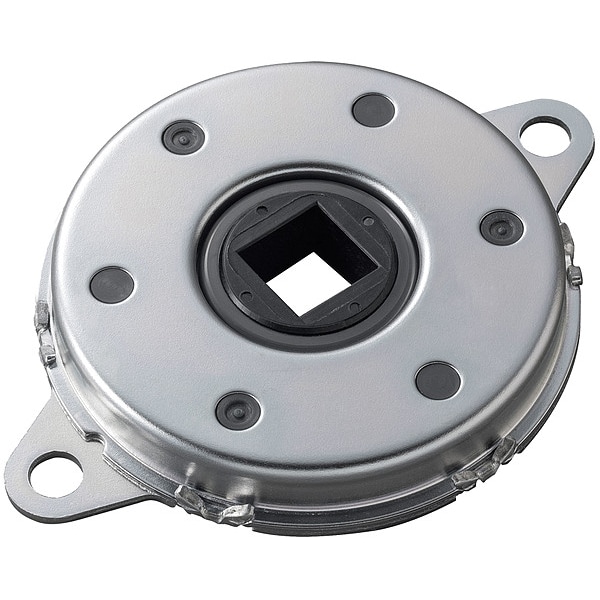

Bansbach Easylift Rotary Damper, Disk, 8.7 Nm FDT-70A-903 - main

Rotary Damper, Disk, 8.7 Nm

  • Mfr # FDT-70A-903

  • Zoro # G0269529

product price: $30.15
/ea

Key Features

Type
Disk
Max. Rotation Speed
50 rpm
Max. Cycle Rate
12 cycles/min
Material
Iron
Operating Temp.
-10~50¡C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FDT-70A-903
Zoro #
G0269529
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
95 mm
Overall Width
65 2/5 mm
Height
11.3mm
Length
95mm
Width
70mm

Details

Item
Rotary Damper
Type
Disk
Max. Rotation Speed
50 rpm
Max. Cycle Rate
12 cycles/min
Material
Iron
Operating Temp.
-10~50¡C
Locking
No
Damper Type
Disk
Adjustable Resistance
No
Torque
8.7±0.8 Nm
Fixed Resistance
Yes
Body Material
Iron (SPFC)
Application
Control speed, Dampen drivers
Damping Direction
Both directions
Shaft Material
Nylon (with glass)
Weight
112g
Center-to-Center Mounting Hole Distance
82 mm
Dampening Direction
Two-Sided Rotation
Shaft Type
Disk
Operating Temperature - Minimum
14 Degrees F
System of Measurement
Metric
Operating Temperature - Maximum
122 Degrees F

Description

Rotary Damper, Disk, Material Metal, Torque 8.7 Nm, Max. Cycle Rate 50 per min., Locking No, Fixed Resistance Yes, Adjustable Resistance No, Damper Type Disk
