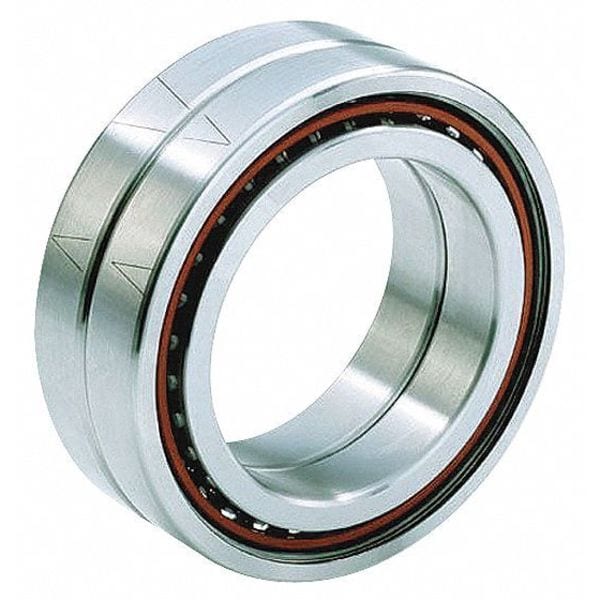

Angular Contact Duplex BRG, 15mm

BARDEN| Zoro #: G1660732| Mfr #: 202HCDUL

$339.72 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1660732 Mfr #: 202HCDUL
Contact Angle (Degree): 15Dynamic Load Capacity (Lb.): -
Lubrication: OilSeal Material: -
Temp. Range (F): - 22 - 212Static Load Capacity (Lb.): -
ABEC Tolerance: 7Item: Angular Contact Ball Bearing
Type: Duplex Spindle BearingsStandard Preload (lbs.): -
Cage Material: PhenolicStatic Load Capacity (N): 5000
Dynamic Load Capacity (N): 9650Max. RPM: 67, 000
Width: 22mmOutside Dia.: 35mm
Bore Dia.: 15mmStandard Preload (N): 47
Country of Origin (subject to change): United States

Product Description

Angular Contact Ball Bearing, Duplex Spindle Bearings, Contact Angle 15 Degrees, Bore Dia 15 mm, Outside Dia 35 mm, Width 22 mm, Standard Preload 47 N, Max RPM 67, 000, Dynamic Load Capacity 9650 N, Static Load Capacity 5000 N, ABEC Tolerance 7, Temp Range - 22 - 212 F, Cage Material High Performance Plastic, Oil Lubrication
