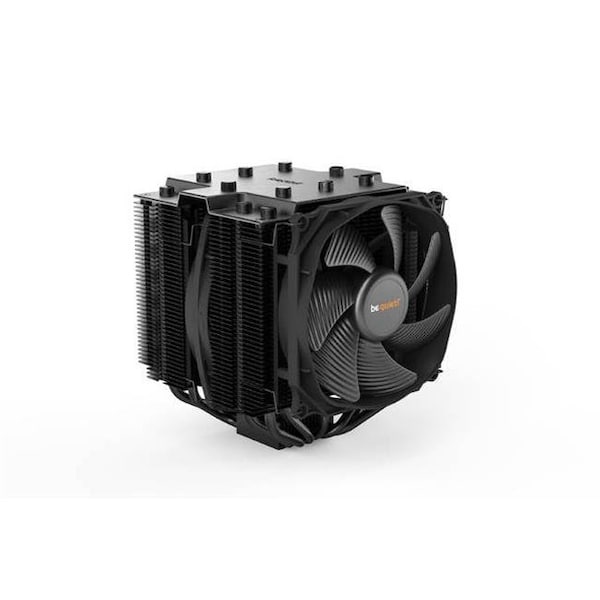

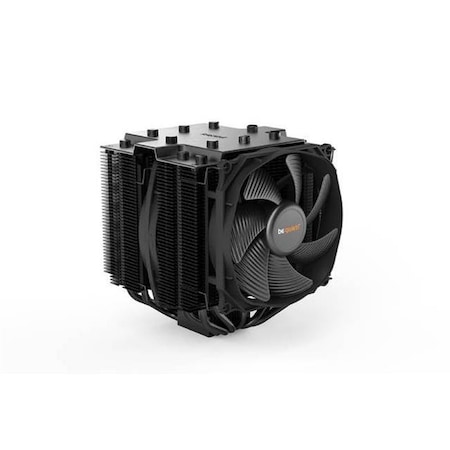

Be Quiet BK022 250W TDP Intel LGA 1150 Dark Rock Pro 4 CPU Cooler Fan (Discontinued)
- Mfr # BK022
- Zoro # G004005633
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BK022
Zoro #
G004005633
UPC #
5711724071430
Country of Origin
China
Dimensions
Heatsink Width
5.35 in
Heatsink Height
4.87 in
Min. Fan Diameter
4.72"
Fan Diameter
5.31 in
Details
Application
Processor
Material
Copper
Compatibility
Processors: Intel, AMD; AMD Socket: AM2 PGA-940, AM2+ PGA-940, AM3 PGA-941, AM3+, AM4, FM1, FM2, FM2+, Intel Socket: B LGA-1366, H LGA-1156, H2 LGA-1155, H3 LGA-1150, H4 LGA-1151, LGA 2011-v3, R LGA-2011, R4 LGA-2066
Fan Life
34.2 Year
Number of Fans
2
Fan Speed (Max)
1500 rpm
Connectors
4-pin PWM
Noise Level
24.3 dB(A)
Fan Speed (Min)
1200 rpm
Item
Cooling Fan/Heatsink
Heatsink Material
Aluminum
Fan Bearing Type
Fluid Dynamic
Description
Features
- Two virtually inaudible Silent Wings PWM fans
- Funnel-shaped frame of the front fan for high air pressure
- Achieves only 24.3dB(A) at maximum fan speed
- Seven high-performance copper heat pipes
- Airflow-optimized cooling fins; cutouts enhance the RAM compatibility
- Easily installable black installation kit can be mounted from above
- Brushed aluminum top cover with diamond cut finish
- German product conception, design and quality control
- Intel: LGA 1150 / 1151 / 1155 / 1156 / 1366 / 2011(-3) Square ILM / 2066
- AMD: Socket AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)
- Fan Model: 1x Silent Wings 3 120mm PWM, 1x Silent Wings 135mm PWM
- Fan Speed: 1,200/ 1,500 RPM @ 100% PWM
- Noise Level: 50% RPM - 12.8 dBA, 75% RPM - 17.9 dBA, 100% RPM - 24.3 dBA
- Rated Voltage: 12V
- Input Current: 0.08 / 0.08A
- Input Power: 0.96 / 0.96W
- Bearing Type: Fluid Dynamic Bearing
- Motor: 6-pole Fan Motor
- Connector: 4 Pin PWM
- Cable Length: 220 / 220 mm
- Life Expectancy: 300,000 hours @ 25°C
- Heat Pipes Number / Diameter: 7 x 6 mm
- Material: Copper Base / Aluminum Fins
- Number of Fins: 90
- CPU Contact Surface: CNC machined
- Surface Treatment: Aluminum / black ceramic spray painted
- Thermal Design Power: 250W
- Dimension 1: 136 x 162.8 x 123.7 mm
- Dimension 2: 145.7 H x 136 W x 162.8 L mm (without mounting material)
- Weight: 2.49 lbs
