  6. 22-2P STR TNC PP IND FOIL SHD, LSZH JKT CMG-LS 300V 105C, ROHS, 1000FT

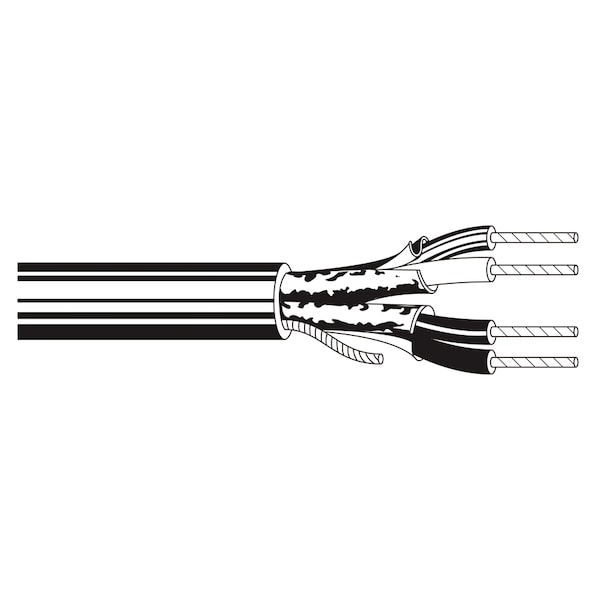

Belden 22-2P STR TNC PP IND FOIL SHD, LSZH JKT CMG-LS 300V 105C, ROHS, 1000FT 8723SB 0101000 - main

22-2P STR TNC PP IND FOIL SHD, LSZH JKT CMG-LS 300V 105C, ROHS, 1000FT

  • Mfr # 8723SB 0101000

  • Zoro # G1150783

product price:  $1.89
/ea
Sold in multiples of 250 for $472.50

Key Features

Jacket Color
Black
Jacket Material
Low Smoke Zero Halogen
Number of Conductors
4
Shielding Material
Bi-Laminate (Alum and Poly)
NEC Article and Type
CMG-LS
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8723SB 0101000
Zoro #
G1150783
UPC #
612825214595
Country of Origin
Unknown

Dimensions

Wire Size
22 AWG
Length
1000 ft
Conductor Size
22 AWG (AMERICAN WIRE GAUGE)

Details

Jacket Color
Black
Jacket Material
Low Smoke Zero Halogen
Number of Conductors
4
Shielding Material
Bi-Laminate (Alum and Poly)
NEC Article and Type
CMG-LS
Standards
CEC/C(UL) CMG-ST1; UL 1685 FT4 Loading
Temp. Rating
105°C
Indoor / Outdoor
Indoor/Outdoor
Number of Conductor Pairs
2
Stranding
7 x 30
Shielded / Unshielded
Shielded
Insulated / Uninsulated
Insulated
Insulation Material
Polypropylene
Wire Material
Tinned Copper
Max. Voltage
300V
Jacketing Material
Lszh-Low Smoke Zero Halogen
Construction
Indivl/Foil Side & Drain Out
Shield Type
Foil Shielded - Alum/Mylar
Screen/Shield
Yes
Conductor Type
Stranded Conductor
Plenum
Low Smoke Zero Halogen (Lszh)
Temperature Rating
105 Degrees Centigrade
NEC Rating
NEC CMG
Conductor Count
2 Pairs
CSA
FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS
Voltage Rating
300 Volts AC
