Shop BELDEN

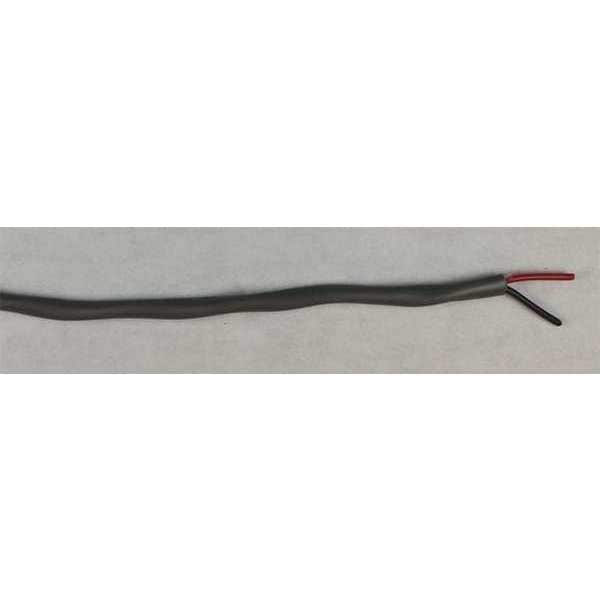

Multi-Conductor, 18 AWG, Silver, 0.230 in.

  • Mfr # 9409 0601000

  • Zoro # G3724415

product price:
$
2,056.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
30
Conductor Gauge
18 AWG
Fire Rating
Commercial
Jacket Color
Silver
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
9409 0601000
Zoro #
G3724415
UPC #
612825240150
Country of Origin
Mexico
Item
Communication Cable
Number of Strands
30
Conductor Gauge
18 AWG
Fire Rating
Commercial
Jacket Color
Silver
Jacket Material
PVC
Number of Conductors
2
Solid/Stranded
Stranded
Maximum Voltage Rating
300 V
NEC Article and Type
725, 727, 800, CMG, ITC, PLTC
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), AWM 2464, CMG, CPR Euroclass: Eca, EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 725, Article 727, Article 800 CMG ITC PLTC, UKCA Mark, UL 1685 UL Loading, FT4, T-29-520, IEEE 1202
Application - Communication Cable
Control Systems
Solid / Stranded
Stranded
Application
Instrumentation Systems, Control Systems
Insulation Material
PVC
Temp. Range
-22 Degrees to 221 Degrees F
Fire Rating - Data Cable
Commercial
Package Type - Data Cable
Reel in a Box
Plenum / Riser Rated
Riser Rated
Cable Sub-Category
Multi-Conductor
Jacket Material - Wire and Cable
PVC
Item - Data Cable
Communication Cable
Total Number of Conductors - Data Cable
2 (1 Pair)
Shielded / Unshielded
Unshielded
Shielded
Unshielded
Suggested Voltage Rating - Data Cable
300 V
Package Type
Reel in a Box
Resistance Properties
Flame/Fire Resistant, UV Resistant
Maximum Impedance
7.2 ohm
Number of Pairs
1
Maximum Capacitance
26.0 pf/ft
Maximum Operating Temperature
221 Degrees F
Product Type
Communication Cable
Minimum Operating Temperature
-22 Degrees F
Maximum Current
5 A

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 30, Conductor Gauge 18 AWG, Insulation Material PVC, Jacket Color Silver, Jacket Material PVC, Shielded Unshielded, Shielding Material Not Applicable, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.2 in, Package Type Reel in a Box, Application Instrumentation Systems, Control Systems, Maximum Voltage Rating 300 V, NEC Article and Type 725, 727, 800, CMG, ITC, PLTC, Number of Pairs 1
