  6. M17/158-00001 19 SOL SCCS TFE, 2-98% SPC BRD SHDS FEP JKT, 1000FT

This item is Discontinued.

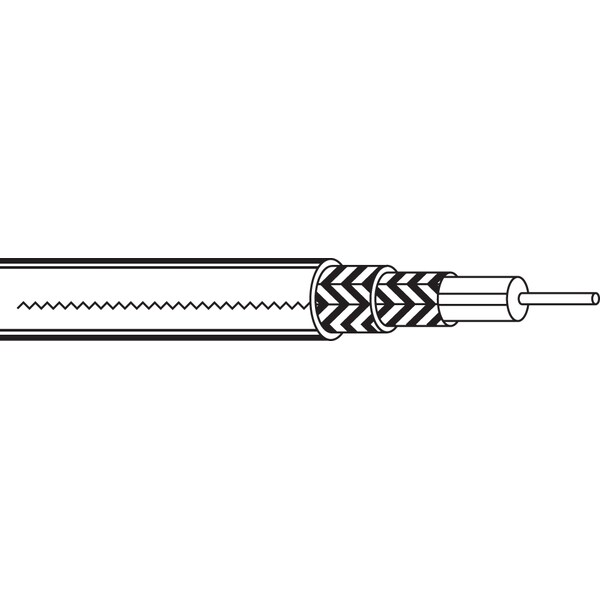

Belden M17/158-00001 19 SOL SCCS TFE, 2-98% SPC BRD SHDS FEP JKT, 1000FT 83242 0011000

M17/158-00001 19 SOL SCCS TFE, 2-98% SPC BRD SHDS FEP JKT, 1000FT (Discontinued)

  • Mfr # 83242 0011000
  • Zoro # G2135762
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
83242 0011000
Zoro #
G2135762
UPC #
612825203629
Country of Origin
Unknown

Dimensions

Length
1000 ft
AWG Size
19

Details

Insulation Material
TFE
Shielding
Braid(s)
Impedance
50 Ohm Nominal Impedance
Color
Brown
UL voltage rating
150 V RMS
Conductor Configuration
1 Coax / Triax
Military Specification
Commercial, non-QPL product (M17/158-00001)
UL Temp Rating
200°C
Material@Insulation01
PTFE - Polytetrafluoroethylene
Conductor Count
1
Conductor Material
Silvered Copper Covered Steel
UV Resistance
Yes
Suitability - Aerial
Yes - When supported by messenger wire
Suitability - Indoor
Yes
Jacket
FEP
Put-Up Type
Reel
Suitability - Outdoor
Yes
Material@OuterShield1 2
Silvered Copper (SC)
Environmental Space
Indoor - Plenum
Stranding@Conductor1
Solid
UL Flammability
NFPA 262
Plenum
Plenum
Jacketing Material
Frpvc-Flame Retardant Polyvinyl Chloride
CSA
FT6 HORIZONTAL FLAME & SMOKE TEST
Material
Silver Coated Cu Clad Stl

Restrictions

This item has been restricted from sale in the following states: CA
