Shop BELDEN

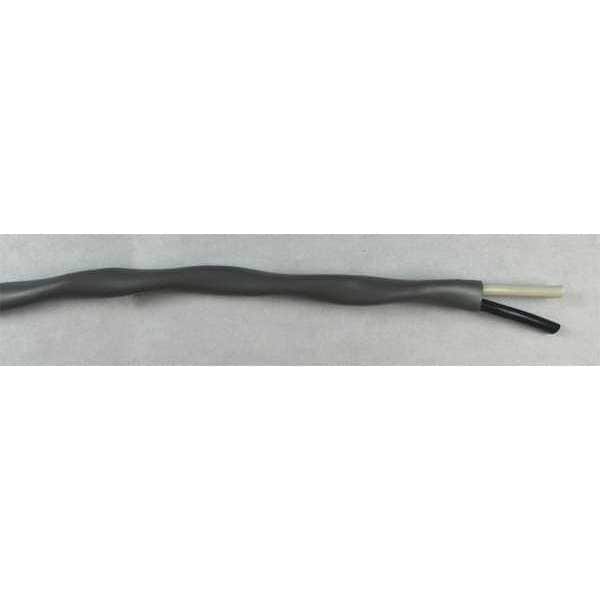

Multi-Conductor, 12 AWG, Silver, 0.386 in.

  • Mfr # 8477 0601000

  • Zoro # G3724537

product price:
$
4,689.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
30
Conductor Gauge
12 AWG
Fire Rating
Commercial
Jacket Color
Chrome
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8477 0601000
Zoro #
G3724537
UPC #
612825208655
Country of Origin
Mexico

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.4 in
Conductor Size - Data Cable
12 AWG
Conductor Size
12 AWG
Nominal Outside Dia.
0.386 in
Spool Length
1,000 ft
Length
1000 ft.
Bend Radius
3 7/8 in
Insulation Thickness (In.)
0.032 in
Jacket Thickness (In.)
0.035 in

Details

Item
Power Limited Cable
Number of Strands
30
Conductor Gauge
12 AWG
Fire Rating
Commercial
Jacket Color
Chrome
Jacket Material
PVC
Number of Conductors
2
Solid/Stranded
Stranded
Maximum Voltage Rating
600 V
NEC Article and Type
725, CL3R
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), AWM 2587, CPR Euroclass: Eca, EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 725 CL3R, UKCA Mark, UL 1666 Riser, IEC 60332-1-2
Solid / Stranded
Stranded
Shielded
Unshielded
Item - Data Cable
Power Limited Cable
Temp. Range
-4 Degrees to 194 Degrees F
Shielded / Unshielded
Unshielded
Plenum / Riser Rated
Riser Rated
Cable Sub-Category
Multi-Conductor
Application - Communication Cable
Audio Systems
Insulation Material
PVC
Fire Rating - Data Cable
Riser
Jacket Material - Wire and Cable
PVC
Application
Broadcast Systems, Control Systems, Audio Systems, Instrumentation Systems
Suggested Voltage Rating - Data Cable
300 V
Total Number of Conductors - Data Cable
2 (1 Pair)
Package Type - Data Cable
Reel in a Box
Package Type
Reel in a Box
Maximum Current
30 A
Minimum Operating Temperature
-4 Degrees F
Maximum Capacitance
35.0 pf/ft
Resistance Properties
Flame/Fire Resistant
Number of Pairs
1
Maximum Impedance
1.8 ohm
Maximum Operating Temperature
194 Degrees F
Product Type
Communication Cable
NEC Rating
UL LISTED ART 725 CL3 RISER
Jacketing Material
Pvc-Polyvinyl Chloride
Temperature Rating
90 Degrees Centigrade
Copper
TC
Material
Tinned High-Conductivity Copper Conductors
Screen/Shield
No
Color Code
Gray (Slate)
Spec Nbr Ul Style
UL STYLE, 2587
Conductor Strand
65x30
Voltage Rating
600 Volts AC
Awg
12
UL Designation
CL3R
Conductor Type
Stranded Conductor

Description

Power Limited Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 30, Conductor Gauge 12 AWG, Insulation Material PVC, Jacket Color Chrome, Jacket Material PVC, Shielded Unshielded, Shielding Material Not Applicable, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.4 in, Package Type Reel in a Box, Application Broadcast Systems, Control Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 600 V, NEC Article and Type 725, CL3R
