  11. Multi-Conductor, 18 AWG, Natural, 0.170 in.

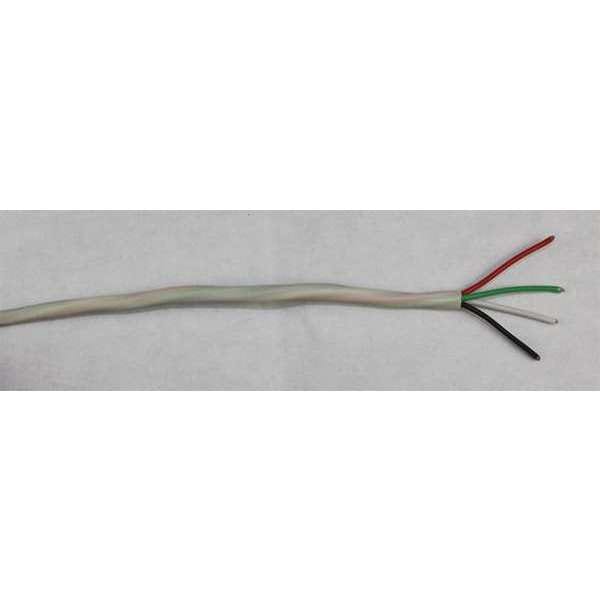

Belden Multi-Conductor, 18 AWG, Natural, 0.170 in. 82489 8771000 - main

Multi-Conductor, 18 AWG, Natural, 0.170 in.

  • Mfr # 82489 8771000

  • Zoro # G3724318

product price: $4,886.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
30
Conductor Gauge
18 AWG
Fire Rating
Commercial
Jacket Color
Natural
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
82489 8771000
Zoro #
G3724318
UPC #
612825197140
Country of Origin
United States

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.2 in
Length
1000 ft.
Conductor Size
18 AWG
Spool Length
1,000 ft
Conductor Size - Data Cable
18 AWG
Nominal Outside Dia.
0.17 in
Bend Radius
1 3/4 in
Jacket Thickness (In.)
0.014 in
Insulation Thickness (In.)
0.007 in

Details

Item
Communication Cable
Number of Strands
30
Conductor Gauge
18 AWG
Fire Rating
Commercial
Jacket Color
Natural
Jacket Material
PVC
Number of Conductors
4
Solid/Stranded
Stranded
Maximum Voltage Rating
300 V
NEC Article and Type
725, 800, CL3P, CMP
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), CMP, CPR Euroclass: Eca, EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 725, Article 800 CMP CL3P, NFPA 262 UL 910 (Plenum), UKCA Mark
Cable Sub-Category
Multi-Conductor
Solid / Stranded
Stranded
Application - Communication Cable
Audio Systems, Control Systems, Instrumentation Systems
Plenum / Riser Rated
Plenum Rated
Application
Alarm Systems, Audio Systems, Instrumentation Systems
Suggested Voltage Rating - Data Cable
300 V
Item - Data Cable
Communication Cable
Shielded / Unshielded
Unshielded
Fire Rating - Data Cable
Plenum
Total Number of Conductors - Data Cable
4 (0 Pair)
Temp. Range
32 Degrees to 167 Degrees F
Jacket Material - Wire and Cable
PVC
Shielded
Unshielded
Package Type - Data Cable
Reel in a Box
Insulation Material
FEP
Package Type
Reel in a Box
Maximum Current
5 A
Maximum Operating Temperature
167 Degrees F
Maximum Capacitance
21.0 pf/ft
Minimum Operating Temperature
32 Degrees F
Maximum Impedance
6.9 ohm
Number of Pairs
0
Product Type
Communication Cable
Resistance Properties
Flame/Fire Resistant
Voltage Rating
300 Volts AC
Conductor Type
Stranded Conductor
Color Code
Black, White, Red, Green
Temperature Rating
75 Degrees Centigrade
Screen/Shield
No
NEC Rating
UL LISTED ART 800 PLENUM
Material
Tinned Copper
Spec Nbr Ul Style
UL LSTED WIRE MISC.
Jacket
Flamarrest--Natural
Jacketing Material
Lspvc-Low Smoke Polyvinyl Chloride
CSA
FT6 HORIZONTAL FLAME & SMOKE TEST

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 30, Conductor Gauge 18 AWG, Insulation Material FEP, Jacket Color Natural, Jacket Material PVC, Shielded Unshielded, Shielding Material Not Applicable, Solid/Stranded Stranded, Number of Conductors 4, Outside Diameter 0.2 in, Package Type Reel in a Box, Application Alarm Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 725, 800, CL3P, CMP, Number of Pairs 0
