  11. Multi-Conductor, 22 AWG, Red, 0.119 in.

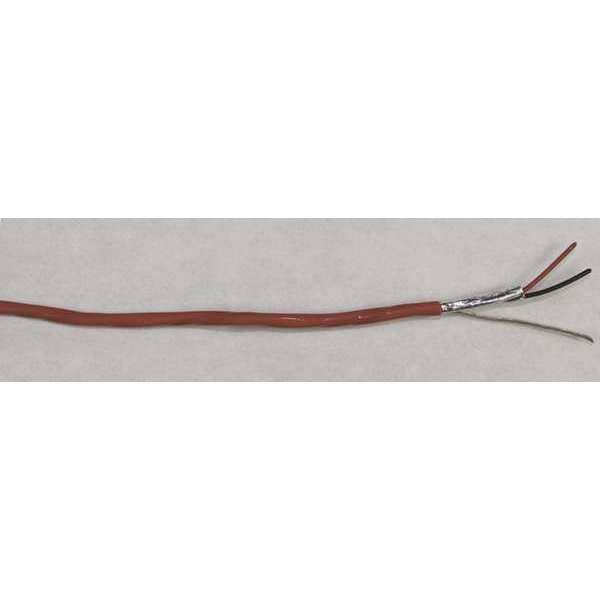

Belden Multi-Conductor, 22 AWG, Red, 0.119 in. 88761 0021000 - main

Multi-Conductor, 22 AWG, Red, 0.119 in.

  • Mfr # 88761 0021000

  • Zoro # G3724239

product price: $3,644.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
30
Conductor Gauge
22 AWG
Fire Rating
Commercial
Jacket Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
88761 0021000
Zoro #
G3724239
UPC #
612825217350
Country of Origin
United States

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.1 in
Nominal Outside Dia.
0.119 in
Conductor Size - Data Cable
22 AWG
Length
1000 ft.
Conductor Size
22 AWG
Spool Length
1,000 ft
Bend Radius
1 1/4 in

Details

Item
Communication Cable
Number of Strands
30
Conductor Gauge
22 AWG
Fire Rating
Commercial
Jacket Color
Red
Jacket Material
FEP
Number of Conductors
2
Solid/Stranded
Stranded
Shielding Material
Foil
Maximum Voltage Rating
300 V
NEC Article and Type
800 CMP
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), CPR Euroclass: Eca, EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CMP, NFPA 262, UL 910 (Plenum), FT4, IEC 60332-1-2, UKCA Mark
Shielded
Shielded
Plenum / Riser Rated
Plenum Rated
Application - Communication Cable
Audio Systems, Control Systems, Instrumentation Systems
Insulation Material
FEP
Total Number of Conductors - Data Cable
2 (1 Pair)
Suggested Voltage Rating - Data Cable
300 V
NEC Article
800
Shielded / Unshielded
Shielded
Cable Sub-Category
Multi-Conductor
Temp. Range
-94 Degrees to 392 Degrees F
Item - Data Cable
Communication Cable
Package Type - Data Cable
Reel in a Box
Jacket Material - Wire and Cable
FEP
Application
Instrumentation Systems, Audio Systems
Fire Rating - Data Cable
Plenum
Solid / Stranded
Stranded
Package Type
Reel in a Box
Impedance
42 Ohm Nominal Impedance
Product Type
Communication Cable
Maximum Operating Temperature
302 Degrees F
Maximum Current
9 A
Maximum Capacitance
35.0 pf/ft (Nominal Capacitance Conductor to Conductor); 67.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))
Resistance Properties
Chemical Resistant, Flame/Fire Resistant
Maximum Impedance
42 ohm
Minimum Operating Temperature
-4 Degrees F
Number of Pairs
1
Shield Type
Foil Shielded - Alum/Mylar
Conductor Count
1 Pair
NEC Rating
UL LISTED ART 800 PLENUM
Temperature Rating
200 Degrees Centigrade
Screen/Shield
Yes
Conductor Type
Stranded Conductor
CSA
FT6 HORIZONTAL FLAME & SMOKE TEST
Voltage Rating
300 Volts AC
Spec Nbr Ul Style
UL LSTED WIRE MISC.
Construction
Overall Shield & Drain
Jacketing Material
Fep-Fluorinated Ethylene Propylene
Material
Tinned Copper

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 30, Conductor Gauge 22 AWG, Insulation Material FEP, Jacket Color Red, Jacket Material FEP, Shielded Shielded, Shielding Material Foil, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.1 in, Package Type Reel in a Box, Application Instrumentation Systems, Audio Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CMP, Number of Pairs 1, Product Type Communication Cable
