Shop BELDEN

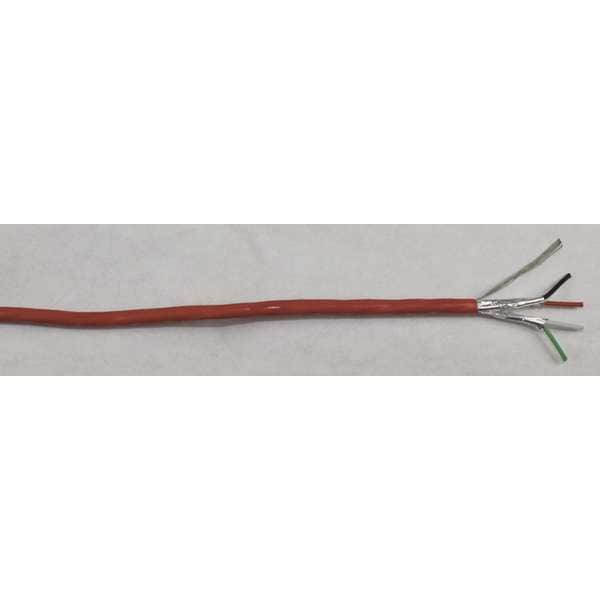

Multi-Conductor, 22 AWG, Red, 0.148 in.

  • Mfr # 88723 0021000

  • Zoro # G3724257

product price:
$
5,130.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
30
Conductor Gauge
22 AWG
Fire Rating
Commercial
Jacket Color
Red
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
88723 0021000
Zoro #
G3724257
UPC #
612825217176
Country of Origin
Mexico

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.2 in
Conductor Size
22 AWG
Length
1000 ft.
Nominal Outside Dia.
0.148 in
Spool Length
1,000 ft
Conductor Size - Data Cable
22 AWG
Bend Radius
1 1/2 in

Details

Item
Communication Cable
Number of Strands
30
Conductor Gauge
22 AWG
Fire Rating
Commercial
Jacket Color
Red
Jacket Material
FEP
Number of Conductors
4
Solid/Stranded
Stranded
Shielding Material
Foil
Maximum Voltage Rating
300 V
NEC Article and Type
800 CMP
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), CPR Euroclass: Eca, CPR UKCA Class: Eca, EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CMP, NFPA 262 (UL910), FT6, IEC 60332-1-2, UKCA Mark
Shielded
Shielded
Solid / Stranded
Stranded
Total Number of Conductors - Data Cable
4 (2 Pair)
Application
Instrumentation Systems, Audio Systems
Jacket Material - Wire and Cable
FEP
Suggested Voltage Rating - Data Cable
300 V
Fire Rating - Data Cable
Plenum
Plenum / Riser Rated
Plenum Rated
Cable Sub-Category
Multi-Conductor
Temp. Range
-94 Degrees to 392 Degrees F
Application - Communication Cable
Audio Systems, Control Systems, Instrumentation Systems
Shielded / Unshielded
Shielded
Item - Data Cable
Communication Cable
Package Type - Data Cable
Reel in a Box
Insulation Material
FEP
Package Type
Reel in a Box
Number of Pairs
2
Resistance Properties
Chemical Resistant, Flame/Fire Resistant, Oil Resistant, UV Resistant
Maximum Current
2.8 A
Product Type
Communication Cable
Maximum Impedance
40 ohm
Minimum Operating Temperature
-94 Degrees F
Maximum Capacitance
35.0 pf/ft (Nominal Capacitance Conductor to Conductor); 67.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))
Maximum Operating Temperature
392 Degrees F
CSA
FT6 HORIZONTAL FLAME & SMOKE TEST
Conductor Type
Stranded Conductor
Construction
Overall & Individual Shields W/Drain
NEC Rating
UL LISTED ART 800 PLENUM
Shield Type
Foil Shielded - Alum/Mylar
Screen/Shield
Yes
Temperature Rating
200 Degrees Centigrade
Conductor Count
2 Pairs
Voltage Rating
300 Volts AC
Material
Tinned Copper

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 30, Conductor Gauge 22 AWG, Insulation Material FEP, Jacket Color Red, Jacket Material FEP, Shielded Shielded, Shielding Material Foil, Solid/Stranded Stranded, Number of Conductors 4, Outside Diameter 0.2 in, Package Type Reel in a Box, Application Instrumentation Systems, Audio Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CMP, Number of Pairs 2, Product Type Communication Cable
