  11. Multi-Conductor, 22 AWG, Silver, 0.273 in.

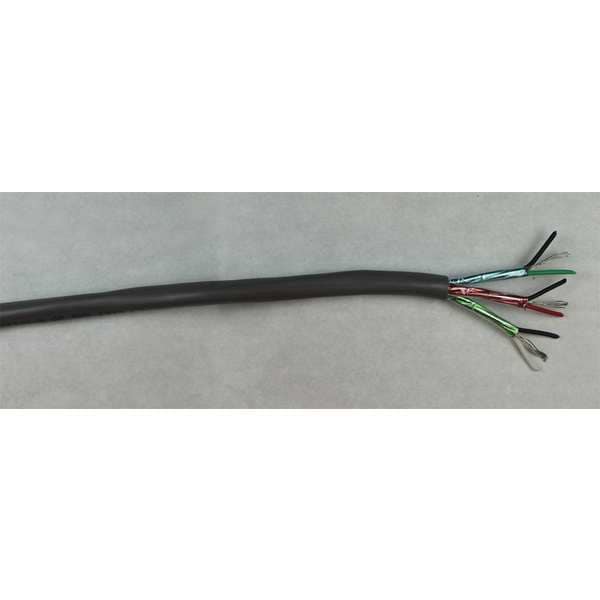

Belden Multi-Conductor, 22 AWG, Silver, 0.273 in. 8777 0601000 - main

Multi-Conductor, 22 AWG, Silver, 0.273 in.

  • Mfr # 8777 0601000

  • Zoro # G3724421

product price: $2,700.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
30
Conductor Gauge
22 AWG
Fire Rating
Commercial
Jacket Color
Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8777 0601000
Zoro #
G3724421
UPC #
612825216094
Country of Origin
Mexico

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.3 in
Length
1000 ft.
Conductor Size
22 AWG
Nominal Outside Dia.
0.273 in
Spool Length
1,000 ft
Conductor Size - Data Cable
22 AWG
Bend Radius
2 3/4 in

Details

Item
Communication Cable
Number of Strands
30
Conductor Gauge
22 AWG
Fire Rating
Commercial
Jacket Color
Chrome
Jacket Material
PVC
Number of Conductors
6
Solid/Stranded
Stranded
Shielding Material
Foil
Maximum Voltage Rating
300 V
NEC Article and Type
800 CM
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), AWM 2919, CM, CPR Euroclass: Eca, CPR UKCA Class: Eca, EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CM, UKCA Mark, UL 1685 FT4 Loading, IEC 60332-1-2
Insulation Material
Plastic
Application
Computer Systems, Audio Systems, Instrumentation Systems
Application - Communication Cable
Audio Systems, Control Systems, Instrumentation Systems
Solid / Stranded
Stranded
Shielded
Shielded
Total Number of Conductors - Data Cable
6 (3 Pair)
Shielded / Unshielded
Shielded
Cable Sub-Category
Multi-Conductor
Package Type - Data Cable
Reel in a Box
Fire Rating - Data Cable
Commercial
Suggested Voltage Rating - Data Cable
300 V
Jacket Material - Wire and Cable
PVC
Temp. Range
-4 Degrees to 176 Degrees F
Item - Data Cable
Communication Cable
NEC Article
800
Plenum / Riser Rated
Riser Rated
Impedance
50 Ohm Nominal Impedance
Package Type
Reel in a Box
Number of Pairs
3
Product Type
Communication Cable
Resistance Properties
Flame/Fire Resistant
Maximum Operating Temperature
176 Degrees F
Maximum Current
2.8 A
Maximum Impedance
50 ohm
Maximum Capacitance
30.0 pf/ft (Nominal Capacitance Conductor to Conductor); 55.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))
Minimum Operating Temperature
-4 Degrees F
Conductor Type
Stranded Conductor
Screen/Shield
Yes
Temperature Rating
80 Degrees Centigrade
Shield Type
Foil Shielded - Alum/Mylar
Conductor Count
3 Pairs
Construction
Indivl/Foil Side & Drain In
NEC Rating
UL LISTED ART 800
Spec Nbr Ul Style
UL STYLE, 2919
Color Code
Gray (Slate)
Jacketing Material
Pvc-Polyvinyl Chloride
Plenum
General Purpose
Material
Tinned Copper
Voltage Rating
30 Volts AC

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 30, Conductor Gauge 22 AWG, Insulation Material Plastic, Jacket Color Chrome, Jacket Material PVC, Shielded Shielded, Shielding Material Foil, Solid/Stranded Stranded, Number of Conductors 6, Outside Diameter 0.3 in, Package Type Reel in a Box, Application Computer Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 3
