  11. Multi-Conductor, 24 AWG, Silver, 0.283 in.

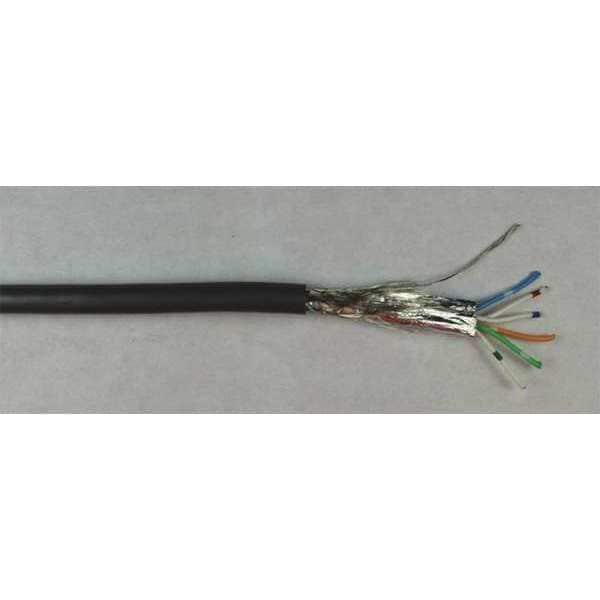

Belden Multi-Conductor, 24 AWG, Silver, 0.283 in. 8103 0601000 - main

Multi-Conductor, 24 AWG, Silver, 0.283 in.

  • Mfr # 8103 0601000

  • Zoro # G3724589

product price: $3,964.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
32
Conductor Gauge
24 AWG
Fire Rating
Commercial
Jacket Color
Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8103 0601000
Zoro #
G3724589
UPC #
612825194804
Country of Origin
United States

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.3 in
Spool Length
1,000 ft
Conductor Size - Data Cable
24 AWG
Conductor Size
24 AWG
Nominal Outside Dia.
0.283 in
Length
1000 ft.
Bend Radius
2 3/4 in

Details

Item
Communication Cable
Number of Strands
32
Conductor Gauge
24 AWG
Fire Rating
Commercial
Jacket Color
Chrome
Jacket Material
PVC
Number of Conductors
6
Solid/Stranded
Stranded
Shielding Material
Tinned Copper Braid
Maximum Voltage Rating
300 V
NEC Article and Type
800 CM
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), AWM 2919, CEC / C(UL) Compliance-CM, CPR Euroclass: Eca, CPR UKCA Class: Eca, EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CM, UKCA Mark, UL 1685 FT4 Loading, IEC 60332-1-2
Fire Rating - Data Cable
Commercial
Shielded
Shielded
Cable Sub-Category
Multi-Conductor
Solid / Stranded
Stranded
Application
Computer Systems, Audio Systems, Instrumentation Systems
Shielded / Unshielded
Shielded
Insulation Material
Foam
Jacket Material - Wire and Cable
PVC
Item - Data Cable
Communication Cable
Total Number of Conductors - Data Cable
6 (3 Pair)
Plenum / Riser Rated
Riser Rated
Suggested Voltage Rating - Data Cable
300 V
Package Type - Data Cable
Reel in a Box
Temp. Range
-22 Degrees to 176 Degrees F
Application - Communication Cable
Computer Systems
Impedance
100 Ohm Nominal Impedance
Package Type
Reel in a Box
Product Type
Communication Cable
Resistance Properties
Impact Resistant, Flame/Fire Resistant
Minimum Operating Temperature
-22 Degrees F
Maximum Capacitance
12.5 pf/ft (Nominal Capacitance Conductor to Conductor); 22.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))
Maximum Current
1.5 A
Maximum Operating Temperature
176 Degrees F
Number of Pairs
3
Maximum Impedance
100 ohm
Plenum
General Purpose
NEC Rating
UL LISTED ART 800
Conductor Count
3 Pairs
Material
Tinned Copper
Construction
Special Construction
Voltage Rating
30 Volts AC
Conductor Type
Stranded Conductor
Temperature Rating
80 Degrees Centigrade
Spec Nbr Ul Style
UL STYLE, 2919
Screen/Shield
Yes
Color Code
Gray (Slate)
Jacketing Material
Pvc-Polyvinyl Chloride
Shield Type
Braid Over Foil Shield

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 32, Conductor Gauge 24 AWG, Insulation Material Foam, Jacket Color Chrome, Jacket Material PVC, Shielded Shielded, Shielding Material Tinned Copper Braid, Solid/Stranded Stranded, Number of Conductors 6, Outside Diameter 0.3 in, Package Type Reel in a Box, Application Computer Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 3
