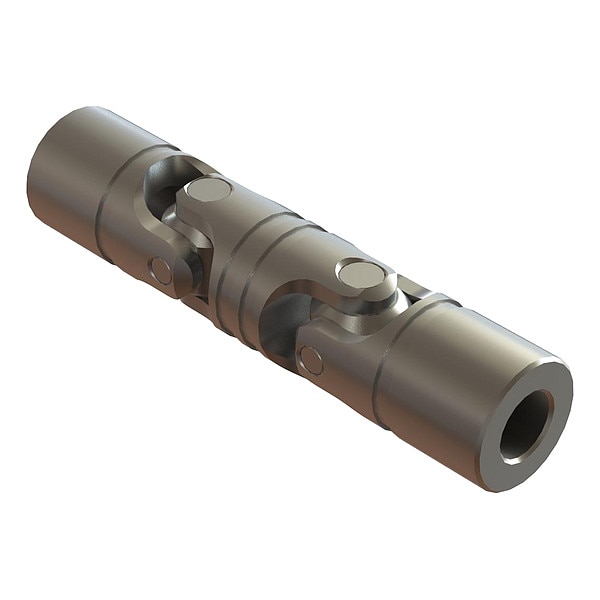

Belden Universal Joint, 1000 RPM, Steel DUJ-SS2000x1000 - main

Universal Joint, 1000 RPM, Steel

  • Mfr # DUJ-SS2000x1000

  • Zoro # G109799239

product price: $583.99
/ea
Free Shipping & Returns

Key Features

Overall Length
8 11/16 in
Standards
AS9100D Certified, AS9102 FAIR, DFARS Compliant, Lot Traceability/Part Serialization, REACH Compliant, RoHS2 Compliant
Bore Diameter
1 in
Maximum Operating Angle
90 Degrees
Booted
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DUJ-SS2000x1000
Zoro #
G109799239
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
8 11/16 in
Bore Diameter
1 in
Coupling Size
2000
Outside Diameter
2 in
Center Yoke Length
3 3/16 in
Joint Diameter
2 in
Length through Bore
1 11/16 in
Yoke Length
2 3/4 in

Details

Item
Universal Joint
Standards
AS9100D Certified, AS9102 FAIR, DFARS Compliant, Lot Traceability/Part Serialization, REACH Compliant, RoHS2 Compliant
Maximum Operating Angle
90 Degrees
Booted
No
Bore Type
Round
Resistance Properties
Corrosion Resistant
Number of Joints
Double
Joint Type
Pin & Block
Included Screws
(2) Set Screw
U-Joint Material
Stainless Steel
Maximum Speed
1,000 RPM
System of Measurement
Inch
Maximum Torque
2,808 in-lb
Break Torque
14,040 in-lb
U-Joint Material Grade
303
Screw Material
Stainless Steel

Description

Universal Joint, Coupling Size 2000, Overall Length 8 11/16 in, Maximum Bore Diameter Not Applicable, Maximum Operating Angle 90 Degrees , Yoke Length 2 3/4 in, Boot Material Not Applicable, Bore Diameter 1 in, Number of Joints Double, Joint Diameter 2 in, Maximum Torque 2,808 in-lb, Maximum Speed 1,000 RPM, U-Joint Material Stainless Steel, Joint Type Pin & Block, Booted No, Outside Diameter 2 in, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore 1 11/16 in
