Shop BELDEN

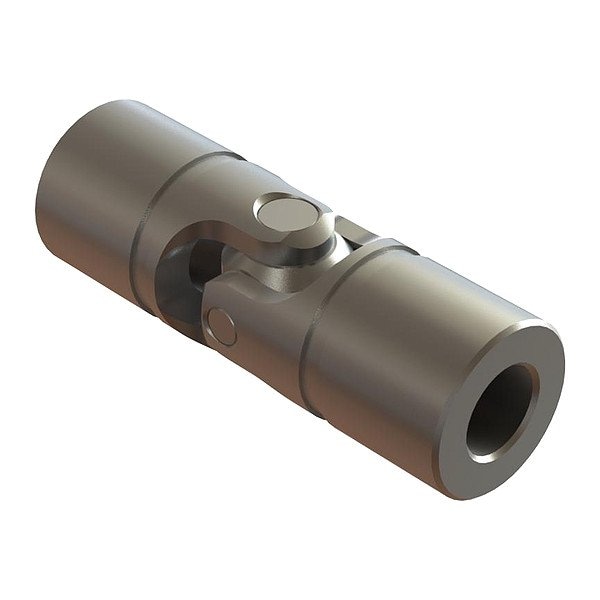

Universal Joint, 1000 RPM, Steel

  • Mfr # UJ-HD1125x563

  • Zoro # G709799530

product price:
$
123.99
/ea
Free Shipping & Returns

Key Features

Standards
AS9100D Certified, AS9102 FAIR, DFARS Compliant, Lot Traceability/Part Serialization, REACH Compliant, RoHS2 Compliant
Overall Length
3 1/2 in
Joint Type
Pin & Block
Bore Type
Round
Joint Diameter
1 1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UJ-HD1125x563
Zoro #
G709799530
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
3 1/2 in
Joint Diameter
1 1/8 in
Coupling Size
1125
Outside Diameter
1 1/8 in
Yoke Length
1 3/4 in
Length through Bore
1 3/16 in
Bore Diameter
9/16 in
Wire Rope Length
3 1/2 in
Length
3 1/2 in

Details

Item
Universal Joint
Standards
AS9100D Certified, AS9102 FAIR, DFARS Compliant, Lot Traceability/Part Serialization, REACH Compliant, RoHS2 Compliant
Joint Type
Pin & Block
Bore Type
Round
Booted
No
Included Screws
(2) Set Screw
Number of Joints
Single
System of Measurement
Inch
Break Torque
3,250 in-lb
Maximum Torque
650 in-lb
Maximum Operating Angle
45 Degrees
Maximum Speed
1,000 RPM
U-Joint Material
Alloy Steel

Description

Universal Joint, Coupling Size 1125, Overall Length 3 1/2 in, Maximum Bore Diameter Not Applicable, Maximum Operating Angle 45 Degrees , Yoke Length 1 3/4 in, Boot Material Not Applicable, Bore Diameter 9/16 in, Number of Joints Single, Joint Diameter 1 1/8 in, Maximum Torque 650 in-lb, Maximum Speed 1,000 RPM, U-Joint Material Alloy Steel, Joint Type Pin & Block, Booted No, Outside Diameter 1 1/8 in, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore 1 3/16 in

Restrictions

WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
