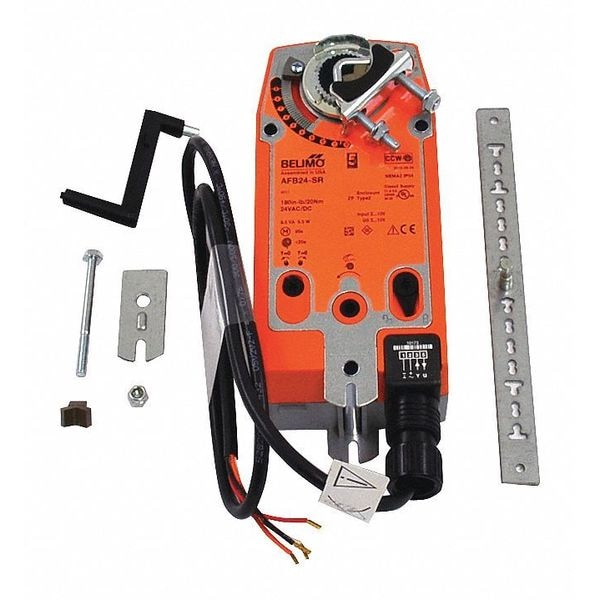

Spring Return Damper Actuator, 24VAC/DC

  • Mfr # AFB24-SR

  • Zoro # G0282311

product price:
$
487.99
/ea
Free Shipping & Returns

Key Features

Shaft Type
1/2 in to 1-3/64 in Round
Power Rating
5.5W
Timing
95 sec
Stroke Deg.
0 to 95
Voltage
24V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
AFB24-SR
Zoro #
G0282311
UPC #
-
Country of Origin
United States
Shaft Type
1/2 in to 1-3/64 in Round
Power Rating
5.5W
Timing
95 sec
Stroke Deg.
0 to 95
Voltage
24V AC/DC
Torque
180 in-lb
Ambient Temp. Range
-22 Degrees to 122 Degrees F
Includes
Mounting Hardware
Motor Direction
CW or CCW
Item
Actuator
Spring Return
Spring Return
Signal Type
Proportional
Input Voltage
24V AC/DC
Electrical Connection Type
Hardwired
Number of Auxiliary Switches
0
For Use With Building Automation Systems
Building Automation System Compatible
Minimum Operating Temperature
-22 Degrees F
NEMA Rating
2
Rated Torque
180 in-lb
Maximum Operating Temperature
122 Degrees F
Valve Application
Damper
Power Consumption
8.5 VA
IP Rating
IP54
Weight
4.1 lb
Shaft Rotation
CW/CCW
Housing Material
Steel
Stroke Degree
95 Degrees
Time to Close
95 sec
For Shaft Shape
Round
Product Type
Damper Actuator
Housing Material Finish
Galvanized
Application
Dampers

Description

Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 180 in-lb, Input Voltage 24V AC/DC, Output Signal Not Applicable, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 95 sec, Shaft Type 1/2 in to 1-3/64 in Round, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees
