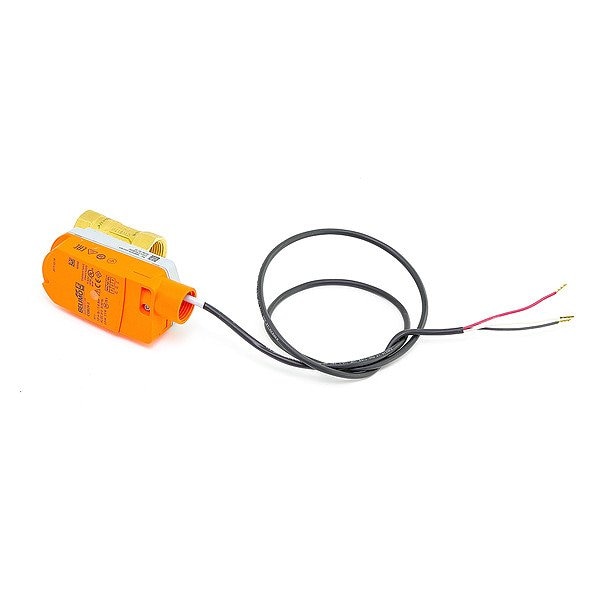

Zone Valve

  • Mfr # Z2075Q-K+CQB24-3
  • Zoro # G615780288
product price:
$
197.99
/ea
Free Shipping & Returns

Key Features

Body Material
Brass
Body Pattern
Two-Way
Port Connection Gender
Female
Allowable Pressure - Maximum
360 psi
Fluid Temperature - Maximum
212 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
Z2075Q-K+CQB24-3
Zoro #
G615780288
UPC #
-
Country of Origin
United States
Item
Zone Valve
Body Material
Brass
Body Pattern
Two-Way
Port Connection Gender
Female
Allowable Pressure - Maximum
360 psi
Fluid Temperature - Maximum
212 Degrees F
Actuator Return Action
Non-Spring Return
Actuator Voltage
24V AC/DC
Operating Temperature - Minimum
35 Degrees F
Installation Orientation
Vertical
Product Type
Zone Valve
Operating Temperature - Maximum
104 Degrees F
Coefficient of Volume (Cv)
9.8
Actuator Housing Material
Plastic
Actuator Control Signal
Floating
Close-Off Pressure
75 psi
Gasket/Plug Material
EPDM
Actuator Type
Electric
Application
Chilled/Hot Water Control
Stem Material
Brass
Frequency
50/60 Hz
For Media
Water, Water-Glycol Solution to 50%
Fluid Temperature - Minimum
36 Degrees F
Includes Actuator
Actuator Included
Standards
CE According to 2014/30/EU and 2014/35/EU, cULus According to UL60730-1A/-2-14, CAN/CSA E60730-1:02, ISO 9001, UL 2043 Compliant
Spring Action
Non-Spring Return
Port Connection Type
NPT
Valve Type
Ball
Compatible Actuator Manufacturer Part Number
CQB24-3
Valve Action
Direction by Wiring

Dimensions

Overall Length
4 1/2 in
Overall Depth
3 5/16 in
Overall Width
2 3/8 in
Port Connection Size
3/4 in
Wire Rope Length
4 1/2 in
Length
4 1/2 in

Description

Hydronic Zone Valve, Actuator Control Signal Floating, Actuator Housing Material Plastic, Actuator Return Action Non-Spring Return, Actuator Type Electric, Actuator Voltage 24V AC/DC, Allowable Pressure - Maximum 360 psi, Application Chilled/Hot Water Control, Body Material Brass, Body Pattern Two-Way, Close-Off Pressure 75 psi, Coefficient of Volume (Cv) 9.8, Fluid Temperature - Maximum 212 Degrees F, Fluid Temperature - Minimum 36 Degrees F, For Media Water, Water-Glycol Solution to 50 Percent
