  9. Automatic Air Vent, Brass, 1/8 MNPT
Shop All Pump Parts
Bell & Gossett

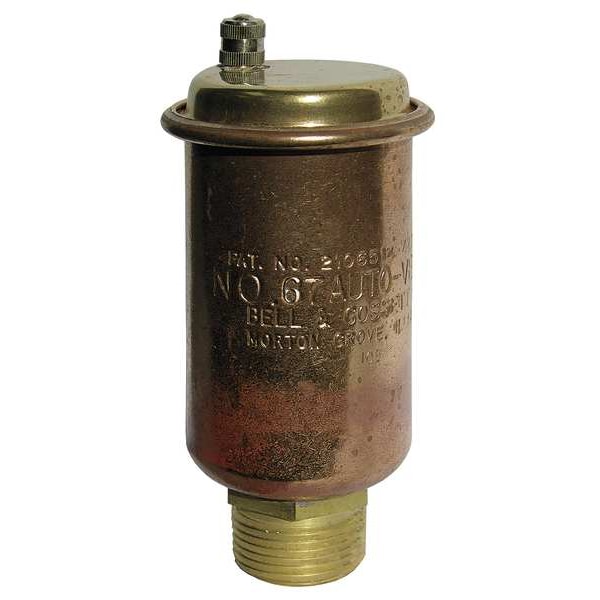

Automatic Air Vent, Brass, 1/8 MNPT

product price: $64.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material of Construction Brass
  • Max. Temp. (F) 240 Degrees F
  • Inlet 1/8 in MNPT
  • Width (In.) 1 1/2 in
  • Max. Working Pressure (PSI) 35 psi
See all product information

Product Information

Dimensions

Width (In.) 1 1/2 in
Height (In.) 3 3/16 in
Overall Length 3 3/16 in
Overall Width 1 1/2 in
Inlet Port Connection Size 1/8 in
Outlet Port Connection Size 1/8 in
Overall Depth 3 3/16 in

Details

Item Air Vent
Material of Construction Brass
Max. Temp. (F) 240 Degrees F
Inlet 1/8 in MNPT
Max. Working Pressure (PSI) 35 psi
Body Material Brass
Application Air Removers
Operating Temperature - Maximum 240 Degrees F
Product Type Air Vent
Operating Pressure - Maximum 35 psi
Relief Port Location Top
Outlet Port Connection Type NPT
Release Method Automatic
Number of Inlet Ports 1
Configuration One Port
Outlet Port Connection Gender Male
Inlet Port Location Bottom
Inlet Port Connection Gender Female
Inlet Port Connection Type NPT
For Media Water
Port Types Included Inlet, Outlet
Number of Outlet Ports 1
Installation Orientation Vertical

Description

Air Vent, Air Vent Connection Gender Not Applicable, Air Vent Connection Size Not Applicable, Air Vent Connection Type Not Applicable, Application Air Removers, Body Material Brass, Configuration One Port, For Media Water, Inlet Port Connection Gender Female, Inlet Port Connection Size 1/8 in, Inlet Port Connection Type NPT, Inlet Port Location Bottom, Installation Orientation Vertical, Number of Inlet Ports 1
