This item is Discontinued.

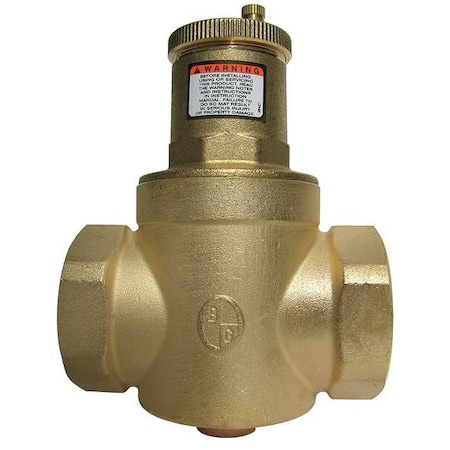

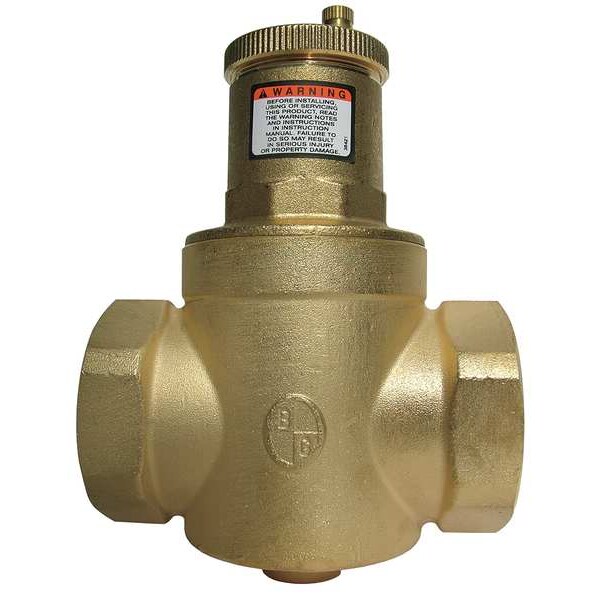

Bell & Gossett Enhanced Air Separator, Brass, 2 In. EASB2-JR

Enhanced Air Separator, Brass, 2 In. (Discontinued)

  • Mfr # EASB2-JR
  • Zoro # G0300526
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EASB2-JR
Zoro #
G0300526
UPC #
683328233215
Country of Origin
Italy

Dimensions

Height (In.)
7 1/2 in
Width (In.)
5 in
Overall Length
7 1/2 in
Overall Width
5 in
Outlet Port Connection Size
2 in
Inlet Port Connection Size
2 in
Overall Depth
7 1/2 in
Expansion Tank Connection Size
1/2 in

Details

Item
Air Separator
Max. Temp. (F)
250 Degrees F
Max. Working Pressure (PSI)
150 psi
Outlet
2 in NPT
Inlet
2 in NPT
Max. Flow GPM
45 gpm
Material of Construction
Brass
Application
Air Removers
Body Material
Brass
Port Types Included
Expansion Tank, Inlet, Outlet
Manufacturer Series
EASB-JR
Outlet Port Connection Type
NPT
Distance Between Inlet and Outlet Port
2 1/2 in
Expansion Tank Connection Type
NPT
Installation Orientation
Horizontal
For Media
Water
Number of Inlet Ports
1
Inlet Port Connection Gender
Female
Operating Pressure - Maximum
150 psi
Relief Port Location
Top
Outlet Port Connection Gender
Female
Inlet Port Connection Type
NPT
Operating Temperature - Maximum
250 Degrees F
Number of Outlet Ports
1
Air Vent Connection Gender
Female
Configuration
In-line
Cap Material
Brass

Description

Air Separator, Air Vent Connection Gender Female, Air Vent Connection Size Not Applicable, Air Vent Connection Type Not Applicable, Application Air Removers, Body Material Brass, Cap Material Brass, Configuration In-line, Distance Between Inlet and Outlet Port 2 1/2 in, Expansion Tank Connection Size 1/2 in, Expansion Tank Connection Type NPT, For Media Water, Inlet Port Connection Gender Female, Inlet Port Connection Size 2 in, Inlet Port Connection Type NPT, Installation Orientation Horizontal
