  9. Hydronic Circulating Pump, 1/4 hp, 115V, 1 Phase, Flange Connection
Bell & Gossett Hydronic Circulating Pump, 1/4 hp, 115V, 1 Phase, Flange Connection 102218 - main

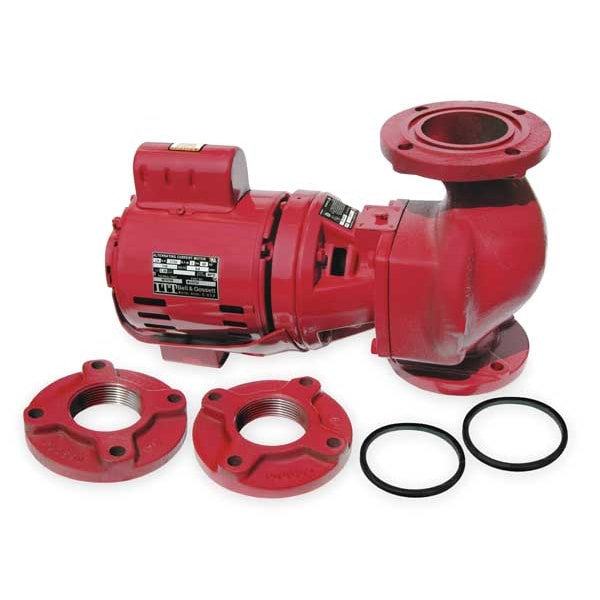

Hydronic Circulating Pump, 1/4 hp, 115V, 1 Phase, Flange Connection

  • Mfr # 102218

  • Zoro # G1787764

product price: $2,184.70
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/4 hp
Inlet/Outlet Size
2-1/2 in
Series
2-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
102218
Zoro #
G1787764
UPC #
683328209333
Country of Origin
United States

Dimensions

Inlet/Outlet Size
2-1/2 in
Face to Face Dimension
10 in
Compatible Discharge Pipe Size
2 1/2 in
Manufacturer Warranty Length
3 yr
Compatible Intake Pipe Size
2 1/2 in
Overall Width
7.56 in
Overall Length
17.25 in
For Inlet Pipe Diameter
2 1/2 in
For Discharge Pipe Diameter
2 1/2 in

Details

Item
Hydronic Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/4 hp
Series
2-1/2 in
Pump Type
3-Piece
Number of Speeds
1
Max. GPM @ Head
110 gpm @ 2.5 ft
Maximum Feet of Head
16 ft
Min. GPM @ Head
17 gpm @ 15 ft
Connection Type
Flange
Pump Mount
Brass
Thermal Protection
Auto
Drive Type
Direct
Shaft Material
Carbon/Ceramic
Amps
3 A
Includes
Auto Thermal Protection
Shut-Off
16 ft
Impeller Material
Steel
Best Efficiency GPM @ Head
65 gpm @ 11 ft
Loop Configuration
Closed
Standards
CSA Certified, UL Listed
Compatible Media Type
Oil
Frequency
60 Hz
Motor Enclosure Design
Open Drip Proof
Maximum Flow Rate @ 5 Feet of Head
97 gpm
Maximum Flow Rate @ 15 Feet of Head
17 gpm
Maximum Media Temperature
225 Degrees F
Series Family
Series 2 1/2 in
Maximum Flow Rate @ 1 Feet of Head
17 gpm
Maximum RPM
1,725 RPM
Flange or Union Included
Yes
Maximum Operating Pressure
125 psi
For Use With Potable Systems
Yes
Nameplate Voltage
115V AC
Maximum Flow Rate @ 50 Feet of Head
[DELETE]
Pump Housing Material
Cast Iron
Maximum Flow Rate @ 10 Feet of Head
65 gpm
Feet of Head - Maximum
16 ft
Media Temperature - Maximum
225 Degrees F
Pump Casing Material
Cast Iron
Media Temperature - Minimum
14 Degrees F
Operating Pressure - Maximum
125 psi
Includes Flange
Flange Included
Connection Standard
Flange
Flow Rate - Maximum
110 gpm
Full Load Current
3 A
Includes Volute
Volute Included
Revolutions Per Minute - Maximum
1,725 RPM
For Low Lead Compliance Level
EX

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 2 1/2 in, Connection Type Flange, Face to Face Dimension 10 in, Flange or Union Included Yes, For Use With Potable Systems Yes, Horsepower 1/4 hp, Maximum Feet of Head 16 ft, Maximum Flow Rate @ 10 Feet of Head 65 gpm, Maximum Flow Rate @ 15 Feet of Head 17 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type 3-Piece, Series Family Series 2 1/2 in, Maximum Flow Rate @ 5 Feet of Head 97 gpm, Amps 3 A

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
