Shop DAYTON

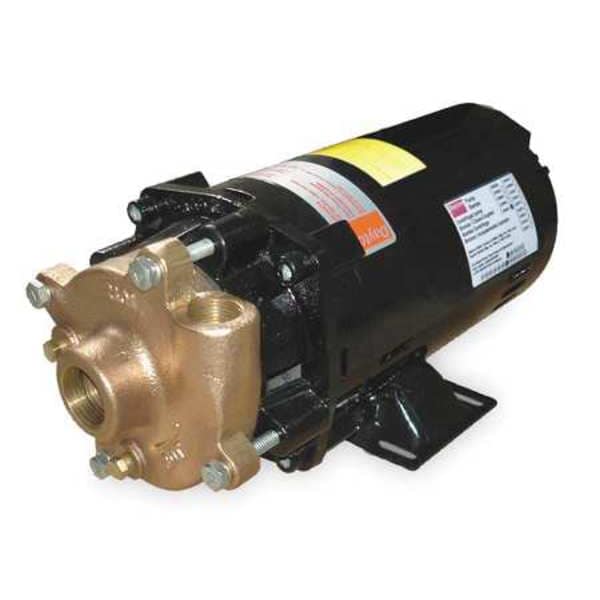

Bronze/Brass 1-1/2 HP Centrifugal Pump 208-230/460V

  • Mfr # 2ZWT3

  • Zoro # G0353613

product price:  $1,116.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
1 1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Brass, Bronze
Inlet Size - Pumps
1-1/2 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2ZWT3
Zoro #
G0353613
UPC #
190735241950
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/2 in NPT
Outlet Size - Pumps
1-1/4 in NPT
Height
6 in
Max. Dia. Solids
1/2 in
Length
15 in
Manufacturers Warranty Length
1 yr
Width
7 1/8 in
Overall Width
7.1 in
Overall Length
14.4 in
Overall Height
6 in
Compatible Intake Pipe Size
1 1/2 in
Solid Diameter (Maximum)
0.5 in
Compatible Discharge Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Impeller Diameter
4 1/4 in
Discharge Diameter
1 1/4 in
Inlet Diameter
1 1/2 in
Shaft Outer Diameter
5/8 in
Motor Frame Size
56J
Wire Rope Length
14.4 in

Details

HP - Pumps
1 1/2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Brass, Bronze
Max. Pressure - Pumps
29 psi
Max. Head
67 ft
Motor Enclosure - Pumps
Open Dripproof
Seal Material
Buna-N
Phase
Three
Bearing Type
Ball
Best Efficiency Range GPM @ Head
55 to 99 gpm @ 55 to 25 ft
Impeller Material
Bronze
Min. GPM @ Head
40 gpm @ 60 ft
Housing Material
Bronze, Brass
Item
Centrifugal Pump
GPM of Water @ 10 Ft. of Head
115
HP
1-1/2
GPM of Water @ 40 Ft. of Head
81
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Motor RPM
3450
Inlet Pressure
200 psi
Hz
60
Best Efficiency GPM @ Head
72 gpm @ 44 ft
Impeller Type
Semi Open
GPM of Water @ 50 Ft. of Head
64
Outlet
1-1/4" NPT
Motor Enclosure
Open Drip Proof
Port Rotation
4 Position Increments
Max. Liquid Temp.
200 Degrees F
Inlet
1-1/2" NPT
Max. Specific Gravity
1.0
GPM of Water @ 30 Ft. of Head
94
Max. Case Pressure
200 psi
GPM of Water @ 20 Ft. of Head
104
GPM of Water @ 25 Ft. of Head
99
Duty
Continuous
GPM of Water @ 60 Ft. of Head
40
Max. Pressure
29.00 psi
Motor Type
3-Phase
GPM of Water @ 15 Ft. of Head
109
Voltage
208-230/460
Frame
56J
Wetted Materials
Brass, Bronze, Buna-N, Carbon, Ceramic, Stainless Steel
Agency Compliance
c UL us
Amps
4.4-3.9/2.0
Max. GPM @ Head
115 gpm @ 10 ft
Includes
Manual
Standards
UL Recognized Motor
Flow Rate @ 10 ft of Head (Maximum)
115 gpm
Maximum RPM
3,450 RPM
Maximum Flow Rate
115 gpm
Flow Rate @ 50 ft of Head (Maximum)
64 gpm
Shaft Material
304 Stainless Steel
Wetted Material
Brass, Bronze, Buna-N, Carbon, Ceramic, Stainless Steel
Maximum Media Temperature
200 Degrees F
Best Efficiency Head
44 ft
Flow Rate @ 30 ft of Head (Maximum)
94 gpm
Impeller Design
Semi-Open
For Use With Potable Systems
No
Compatible with Media Type
Non-Flammable Liquids
Intake Type
NPT
Horsepower
1 1/2 hp
Frequency
60 Hz
Discharge Type
NPT
Shut Off Pressure (Maximum)
29 psi
Specific Gravity (Maximum)
1
Motor Frame Designation
56J
Pump Housing Material
Bronze
Minimum Flow Rate
40 gpm
Flow Rate @ 40 ft of Head (Maximum)
81 gpm
Minimum Media Temperature
40 Degrees F
Duty Cycle
Continuous
Discharge Rotation
90 Degrees Increments
Flow Rate @ 15 ft of Head (Maximum)
109 gpm
Best Efficiency Flow
72 gpm
Flow Rate @ 60 ft of Head (Maximum)
40 gpm
Seal Type
Mechanical
Maximum Feet of Head
67 ft
Flow Rate @ 20 ft of Head (Maximum)
104 gpm
Feet of Head (Minimum)
10 ft
Pumping Application
Boiler Feed, Booster Services, Chemical Transfer, Condensate Return, Filtration, Irrigation, Jockey Pump Services, Liquid Transfer, Spraying Systems, Water Circulation
Nameplate Voltage
230/460V AC
Volute Material
Bronze
Viscosity (Maximum)
100 SUS
Ambient Temperature - Maximum
40 Degrees C
Flow Rate @ 10 ft of Head - Maximum
115 gpm
Number of Stages
1
Motor Speed - Maximum
3,450 RPM
Discharge Rotation Increments
0 Degrees
Flow Rate (Maximum)
115 gpm
Media Temperature - Minimum
40 Degrees F
Full Load Current
3.9/2.0 A
Feet of Head (Maximum)
67 ft
Inlet Position
Center
Electrical Connection Type
Hardwired
Flow Rate (Minimum)
40 gpm
Priming
Manual
Discharge Position
Offset
Hazardous Location Class
Not Rated
Motor Design
Three-Phase
Inlet Orientation
Side
Media Temperature - Maximum
200 Degrees F
Case Pressure - Maximum
100 psi
Discharge Orientation
Top
Shut Off Pressure - Maximum
29 psi
Drive Coupling Type
No Coupling
Mounting Orientation
Horizontal
Chemical Compatibility
Non-Flammable Liquids
Thermal Overload Protection
Yes
Shaft Seal Material
Buna-N
Shaft Seal Type
Mechanical

Description

Centrifugal Pump, Phase Three, Pump Housing Material Bronze, Horsepower 1 1/2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 81 gpm, Flow Rate @ 60 ft of Head (Maximum) 40 gpm, Maximum Feet of Head 67 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/4 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 115 gpm, Flow Rate @ 10 ft of Head (Maximum) 115 gpm, Flow Rate @ 15 ft of Head (Maximum) 109 gpm
