Bell & Gossett

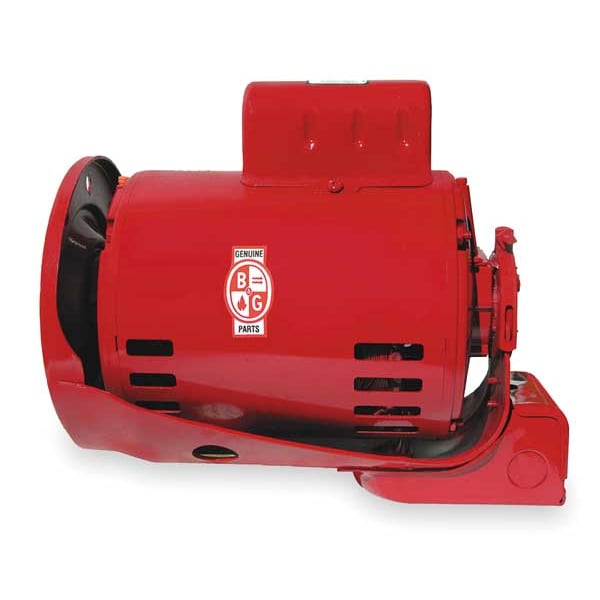

Power Pack, 1/2 HP, 1725 rpm, 115/230V

product price: $1,952.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115/240V AC
  • HP 1/2
  • Motor Enclosure Design Open Drip-Proof
  • RPM Range 1,701-1,800
  • Motor Application Pump
See all product information

Product Information

Details

Item Circulating Pump Motor
Voltage 115/240V AC
HP 1/2
Motor Enclosure Design Open Drip-Proof
RPM Range 1,701-1,800
Motor Application Pump
Motor Frame Material Cast Iron
Motor Mounting Type Cradle Base
Frame Material Cast Iron
Nameplate RPM 1,725
Phase Single
Full Load Amps 5.2/2.6
For Pump Number 4RD13
Motor Sub Application Water Circulator
Frame B&G Frame 6 in
Ring to Ring Center 9 13/16 in
Motor Shaft Rotation CCWLE
Hz 60
Motor Design Split-Phase
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Thermal Protection Auto
Usable @ 200V No
Usable @ 208V No
No. of Speeds 1
Compatible with Manufacturer Model Number 105089
Compatible with Series W05089, W05092LF
Compatible with Pump Type In-Line Circulating Pumps
Nameplate Voltage 115/230V AC
Number of Speeds 1
Compatible with Series Family 60 11/2"AA, 60 11/4"AA, 60 1AA, 60 2A Obs. 60-3S, 60 2AA, 60-13S, 60-15S, 60-B13S, Obs. 60-5S, PD-35S
Horsepower 1/2
Minimum Ambient Temperature 32 Degrees F
Compatible with Brand Bell and Gossett
Full Load Current 5.2 A
Maximum RPM 1,725 RPM
Frequency 60 Hz
Maximum Ambient Temperature 104 Degrees F
Compatible Manufacturer Part Number 105089
Compatible with Manufacturer Part Number 105089
Compatible with Manufacturer Model Number [NEW] 105089
Compatible Manufacturer Model Number 105089
For Use with Mfr. Model Number 105089
For Use With Mfr. Model Number 105089

Description

Circulating Pump Motor, Compatible with Brand Bell and Gossett, Compatible with Grainger Part Number 4RD13, Compatible with Manufacturer Model Number 105089, Compatible with Pump Type In-Line Circulating Pumps, Compatible with Series W05089, W05092LF, Compatible with Series Family 60 11/2 In.AA, 60 11/4 In.AA, 60 1AA, 60 2A Obs. 60-3S, 60 2AA, 60-13S, 60-15S, 60-B13S, Obs. 60-5S, PD-35S, Horsepower 1/2, Maximum Ambient Temperature 104 Degrees F, Maximum RPM 1,725 RPM
