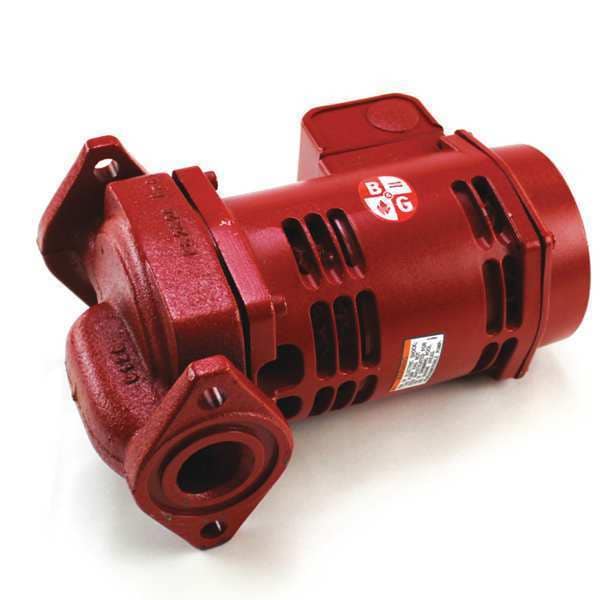

Bell & Gossett Pump, 2/5 HP, 115V, 1 Phase, 3250 rpm 1BL032 - main

Pump, 2/5 HP, 115V, 1 Phase, 3250 rpm

  • Mfr # 1BL032

  • Zoro # G5562518

product price: $1,201.99
/ea
Free Shipping & Returns

Key Features

Fits Brand
Multiple
For Use With
Universal
Voltage
115 V
Phase
1
Standards
cULus
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1BL032
Zoro #
G5562518
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
9-9/16 in
Inlet/Outlet Size
3/4 in to 1 1/2 in
Compatible Discharge Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Overall Width
4-3/4 in
Compatible Intake Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Face to Face Dimension
6 3/8 in
Overall Height
6-3/8 in
For Discharge Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
For Inlet Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in

Details

Fits Brand
Multiple
Item
Pump, 2/5 HP, 115V, 1 Phase, 3250 rpm, PL-55 CI
For Use With
Universal
Voltage
115 V
Phase
1
Standards
cULus
No. of Speeds
1
RPM
3,250 RPM
Motor Design
Permanent Split Capacitor
HP
2/5
Motor Enclosure Design
Open Drip Proof
Application
Boosting
Impeller Material
PPS
Shaft Material
Stainless Steel
Housing Material - Pumps
Cast Iron
Max. GPM @ Head
50 gpm @ 0 ft
Min. GPM @ Head
0 gpm @ 52.5 ft
Mechanical Seal
Carbon on Silicon Carbide
Max. Temp.
225 Degrees F
Connection Style
NPT/Flange
Maximum Flow Rate @ 10 Feet of Head
44 gpm
Connection Type
Flange
Flange or Union Included
No
Maximum Flow Rate @ 15 Feet of Head
40 gpm
Maximum Flow Rate @ 5 Feet of Head
47 gpm
Maximum Flow Rate @ 25 Feet of Head
32 gpm
Frequency
60 Hz
Maximum Flow Rate @ 40 Feet of Head
17 gpm
Pump Type
Standard
Maximum Flow Rate @ 20 Feet of Head
37 gpm
Pipe to Flange or Union Connection Type
FNPT
Pump Housing Material
Cast Iron
For Use With Potable Systems
No
Maximum Flow Rate @ 50 Feet of Head
3 gpm
Series
PL-55
Maximum Media Temperature
225 Degrees F
Horsepower
2/5 hp
Maximum Flow Rate @ 30 Feet of Head
27 gpm
Maximum RPM
3,250 RPM
Rotor Type
Dry
Nameplate Voltage
115V AC
Maximum Flow Rate @ 1 Feet of Head
50 gpm
Maximum Feet of Head
53 ft
For Low Lead Compliance Level
EX
Operating Pressure - Maximum
150 psi
Pump Technology
Centrifugal
Electrical Connection Type
Hardwired
Mounting Orientation
Horizontal
Media Temperature - Minimum
32 Degrees F
Feet of Head - Maximum
53 ft
Includes Timer
No Timer Included
Includes Flange
No Flange Included
For Media Type
Clear Water
Pump Construction
2-Piece
Includes Union
No Union Included
Operating Modes
Constant Pressure
Number of Flange Mounting Holes
2
Full Load Current
4.7 A
Priming
Self-Priming
Connection Standard
Flange
Pump Casing Material
Cast Iron
Requires Dedicated Return Line
No Dedicated Return Line Required
Includes Volute
Volute Included
ANSI Flange Class
Class 150
Revolutions Per Minute - Maximum
3,250 RPM
Thermostat Included
No Thermostat Included
Flow Rate - Maximum
35 gpm
Media Temperature - Maximum
225 Degrees F
Number of Pump Heads
1

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems No, Horsepower 2/5 hp, Maximum Feet of Head 53 ft, Maximum Flow Rate @ 10 Feet of Head 44 gpm, Maximum Flow Rate @ 50 Feet of Head 3 gpm, Maximum Flow Rate @ 15 Feet of Head 40 gpm, Maximum Flow Rate @ 1 Foot of Head 50 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
