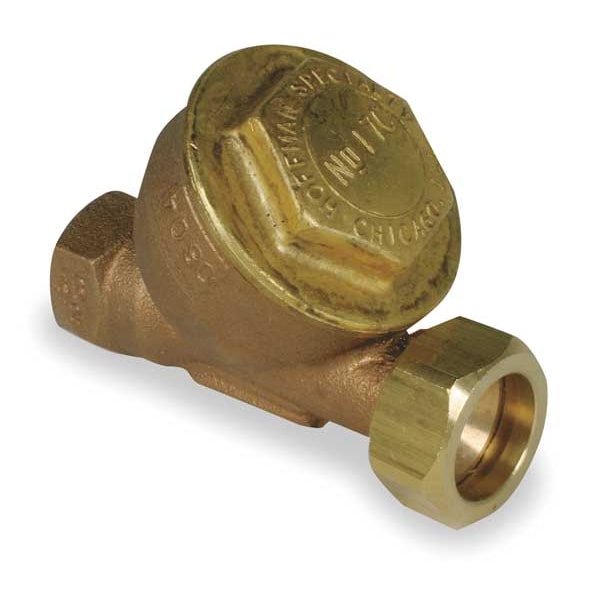

Steam Trap, 25 psi, 353F, 4-23/32 In. L

BELL & GOSSETT| Zoro #: G1641141| Mfr #: 17C-V-2-25

$160.09 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1641141 Mfr #: 17C-V-2-25
Max. Temp.: 353 Degrees FItem: Steam Trap
Body Material: BrassApplication: Drains Heat Exchangers and Other Equipment After Condensate has Subcooled to Maximize the Heat Transfer from the Steam
Pressure Air Vent: Self-AdjustingCondensate Capacity Lbs/Hr: 162
Max. Operating PSI: 25 psiPipe Configuration: Vertical
Pressure Air Vent: Self-AdjustingTrap Position: Vertical
Close Coupling: 1/2"End to End Length: 4-23/32"
Country of Origin (subject to change): United States

Product Description

Steam Trap, Max. Operating PSI 25 psi, Max. Temp. 353 Degrees F, Body Material Brass, (F)NPT Connections 1/2 In., Pipe Configuration Vertical, Trap Position Vertical, Pressure Air Vent Self-Adjusting, Application Drains Heat Exchangers and Other Equipment After Condensate has Subcooled to Maximize the Heat Transfer from the Steam, Condensate Capacity Lbs/Hr 162, End to End Length 4-23/32 In.

Restrictions and Compliance

*1 : California Proposition 65 : This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.
