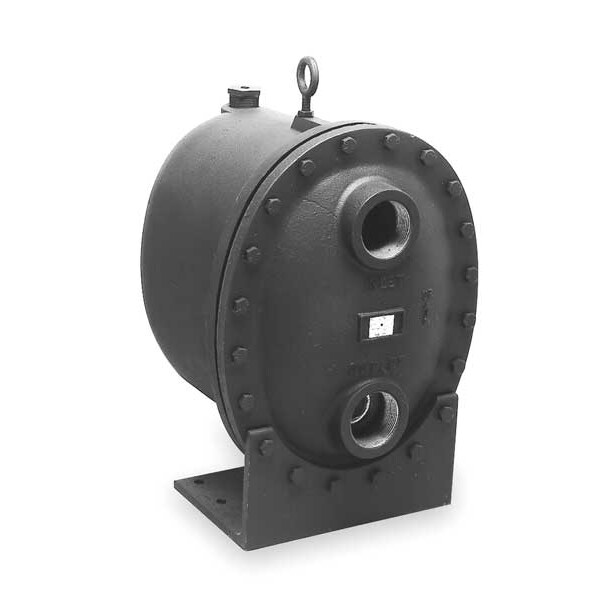

Steam Trap, 377F, Cast Iron, 0 to 15 psi

BELL & GOSSETT| Zoro #: G0404835| Mfr #: FT015C-8

$966.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0404835 Mfr #: FT015C-8
Pressure Air Vent: Self-AdjustingItem: Steam Trap
Body Material: Cast IronApplication: Drains Steam Mains, Unit Heaters, Blast Coils, Heat Exchangers and for all Process Applications Requiring Removal of Condensate as Quickly as it is Formed, Particularly when Controlled by Modulating Temperature or Pressure Control Valves
Condensate Capacity Lbs/Hr: 10, 900Max. Operating PSI: 15 psi
Downstream PSI Range: 0 to 15 psiPipe Configuration: (2) Pipe, (1) Inlet and (1) Outlet
Pressure Air Vent: Self-AdjustingNPT Outlet: 2"
Max. Temp.: 377 Degrees FClose Coupling: 2"
NPT Port: 2"End to End Length: 4-15/16"
NPT Inlet: 2"Country of Origin (subject to change): United States

Product Description

Steam Trap, Max. Operating PSI 15 psi, Max. Temp. 377 Degrees F, Body Material Cast Iron, Downstream PSI Range 0 to 15 psi, (F)NPT Connections 2 In., NPT Inlet 2 In., NPT Outlet 2 In., NPT Port 2 In., Pipe Configuration (2) Pipe, (1) Inlet and (1) Outlet, Pressure Air Vent Self-Adjusting
