  9. Steam Trap, 377F, Cast Iron, 0 to 75 psi
Shop All Steam Traps
Bell & Gossett

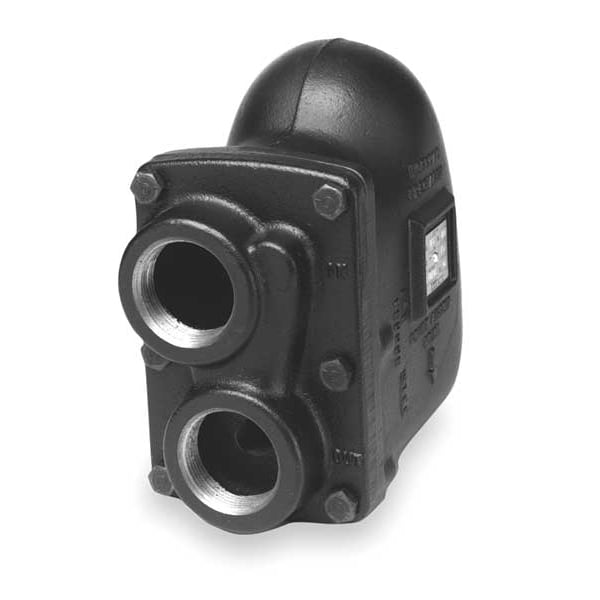

Steam Trap, 377F, Cast Iron, 0 to 75 psi

product price: $771.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • (F)NPT Connections 1 1/2 in
  • Max. Operating PSI 75 psi
  • End to End Length 3 in
  • Condensate Capacity Lbs/Hr 5,900 lb/hr
  • Max. Temp. 377 Degrees F
See all product information

Product Information

Dimensions

End to End Length 3 in
Port Connection Size 1 1/2 in

Details

Item Steam Trap
(F)NPT Connections 1 1/2 in
Max. Operating PSI 75 psi
Condensate Capacity Lbs/Hr 5,900 lb/hr
Max. Temp. 377 Degrees F
Body Material Cast Iron
Application Process Equipment, Blast Coils, Heat Exchangers, Steam Mains, Unit Heaters
NPT Port 1 1/2 in
NPT Outlet 1 1/2 in
Pipe Configuration (2) Pipe, (1) Inlet and (1) Outlet
Pressure Air Vent Self-Adjusting
NPT Inlet 1 1/2 in
Downstream PSI Range 0 to 75 psi
Type Float And Thermostatic
Maximum Capacity at Maximum Pressure Load 5,900 lb/hr at 75 psi
Float Material Cast Iron
Includes Air Vent Air Vent Included
Steam Trap Type Float & Thermostatic
Manufacturer Series C
Number of Ports 2
Port Types Included Inlet, Outlet
Port Connection Type NPT
Operating Pressure - Maximum 75 psi
Installation Orientation Horizontal
Includes Strainer Strainer Included
Operating Temperature - Maximum 377 Degrees F
Port Connection Gender Female
Distance Between Inlet and Outlet Port 3 in
Condensate Capacity 5,900 lb/hr
Configuration C Pattern

Description

Steam Trap, Application Process Equipment, Blast Coils, Heat Exchangers, Steam Mains, Unit Heaters, Body Material Cast Iron, Condensate Capacity 5,900 lb/hr, Configuration C Pattern, Distance Between Inlet and Outlet Port 3 in, Float Material Cast Iron, Includes Air Vent Air Vent Included, Includes Strainer Strainer Included, Installation Orientation Horizontal, Manufacturer Series C, Maximum Capacity at Maximum Pressure Load 5,900 lb/hr at 75 psi, Number of Ports 2
