Johnson Controls

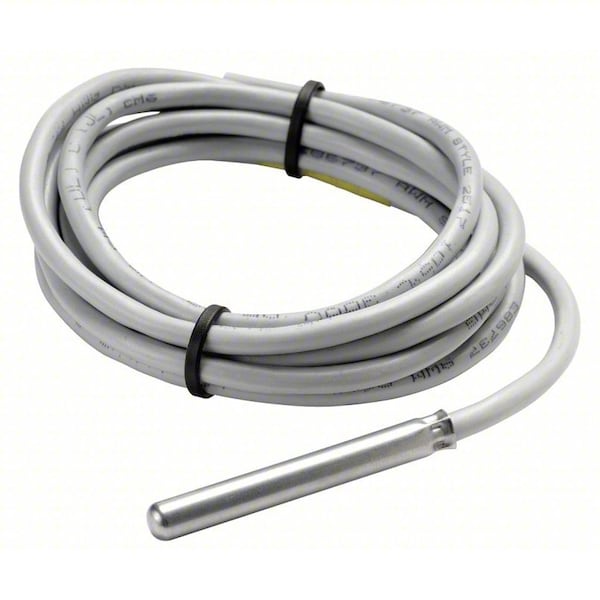

Temperature Sensor, Shielded PVC Cable, Gray

product price: $44.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color Gray
  • Length (In.) 78 in
  • Operating Temp. Range (F) -40 to 212
  • Dia. (In.) 1/4 in
  • Nominal Sensor Ohms @ 75F 1035
See all product information

Product Information

Dimensions

Length (In.) 78 in
Dia. (In.) 1/4 in
Height (In.) 3 in
Overall Diameter 1/4 in
Overall Depth 2 in
Overall Length 78 in
Overall Height 3 in
Probe Length 2 in
Sensor Cable Length 6 1/2 ft
Probe Diameter 1/4 in

Details

Item Temperature Sensor
Color Gray
Operating Temp. Range (F) -40 to 212
Nominal Sensor Ohms @ 75F 1035
For Use With System 350, System 450
Type Shielded PVC Cable
Standards UL, C-UL listed
Compatible Brand and Series Johnson Controls A99B Series
Accessory Type Temperature Sensor
Compatible Manufacturer Model Number A255, A419, A421, DX-9100, R78, System 27, System 350, System 450, XP-9102, XPA-4x1, XPA-8x1
Function Temperature Sensor
Sensing Element Type Silicon
Minimum Sensing Temperature -40 Degrees F
Series A99B
Minimum Operating Temperature -40 Degrees F
Housing Material Stainless Steel
Measurement Type Single
Loop Resistance 1,035 ohm
Housing Color Gray
Application Condenser Fan Cycling, Refrigerator, Cooler and Freezer Temperature Monitoring, Return Air Temperature Monitoring, Space Temperature Monitoring
Maximum Sensing Temperature 212 Degrees F
Electrical Connection Type Hardwired
Maximum Operating Temperature 212 Degrees F
Product Type Temperature Sensor
Display Type None
For Use With Building Automation Systems Building Automation System Compatible
Temperature Accuracy +/-0.9 Degrees F

Description

Temperature Sensor, Display Type None, Sensing Element Type Silicon, Output Not Applicable, Housing Material Stainless Steel, Housing Color Gray, Probe Length 2 in, Temperature Accuracy +/-0.9 Degrees F, Electrical Connection Type Hardwired, Product Type Temperature Sensor, Maximum Sensing Temperature 212 Degrees F, Minimum Sensing Temperature -40 Degrees F, For Use With Building Automation Systems Building Automation System Compatible, Loop Resistance 1,035 ohm, Measurement Type Single
