Bessey

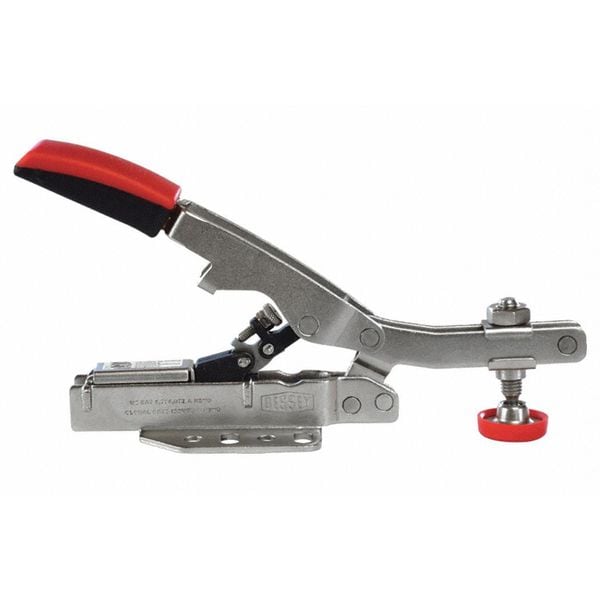

Toggle Clamp, Horizontal, 700 lbs, 2 In

product price: $27.45
/ea
Delivery to commercial address only
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Holding Capacity (Lb.) 700 lb
  • Overall Height (In.) 2 in
  • Body Material Alloy Steel
  • Overall Length (In.) 8.25 in
  • Height Under Arm (In.) 0.75 in
See all product information

Product Information

Dimensions

Overall Height (In.) 2 in
Overall Length (In.) 8.25 in
Height Under Arm (In.) 0.75 in
Dia. (In.) 0.875 in
Thread Size M8
Height Under Arm 1.06 in
Overall Depth 2 in
Arm Length 3.03 in
Overall Length 8.25 in

Details

Item Auto-Adjust Toggle Clamp
Holding Capacity (Lb.) 700 lb
Body Material Alloy Steel
Application Adjustable Clamping Force 25-550 lbs.
Arm 1-9/16 in Horizontal Low Profile
Includes Non-Marring, Plastic Pressure Pad Cover, Removable
Handle 1 x 2-1/8 in Ergonomic
Spindle M8
Base Mounting Centers (In.) 1-3/4 x 1
Construction Alloy Steel Body
Holding Capacity - Maximum 700 lbf
Handle Orientation Horizontal
Accommodates Workpiece Variation Yes
Clamp Arm Opening Angle 180 Degrees
Tip Material Polyethylene
Includes Locking Handle No
Base Mounting Style Flange
Arm Style U-Bar

Description

Auto-Adjust Toggle Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Holding Capacity - Maximum 700 lbf, Arm Style U-Bar, Tip Material Polyethylene, Clamp Arm Opening Angle 180 Degrees , Arm Length 3.03 in, Height Under Arm 1.06 in, Includes Locking Handle No, Accommodates Workpiece Variation Yes, Body Material Alloy Steel, Includes Non-Marring, Plastic Pressure Pad Cover, Removable, Overall Depth 2 in, Overall Length 8.25 in
