  13. Lever Lockset, Mechanical, Privacy, Grd. 1

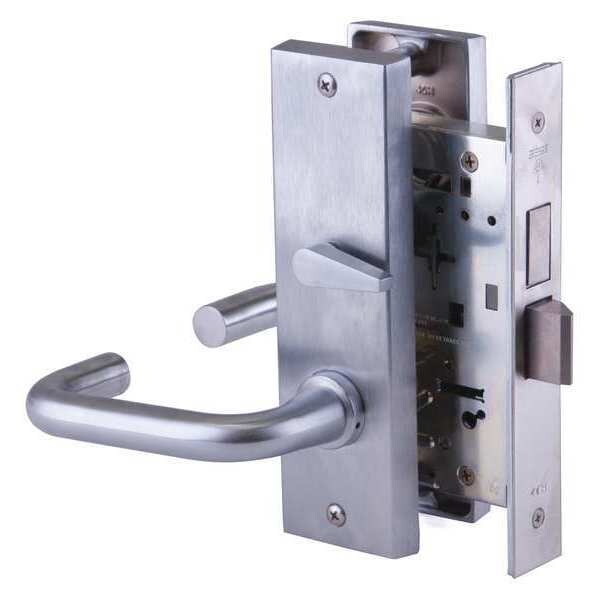

Best Lever Lockset, Mechanical, Privacy, Grd. 1 45H0L3M626 - main

Lever Lockset, Mechanical, Privacy, Grd. 1

  • Mfr # 45H0L3M626

  • Zoro # G0396755

product price: $916.99
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45H0L3M626
Zoro #
G0396755
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Width
1/8 in
Strike Plate Thickness
1 1/4 in
Door Thickness - Maximum
5 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
Series
40H Series
Backset
2 3/4 in
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Includes
2 1/8 in W x 8 in H M Escutcheon
Features
Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
ADA Compliant
Yes
Mortise/Cylindrical
Mortise
Lockset Grade
1
Lockset Handle Type
Lever
Style
40H Escutcheon
Strike Type
ANSI
Number of Keys
0
Mortise / Cylindrical
Mortise
Lockset Fire Rating
3 hr
For Use With
Hollow Metal and Wood Doors
Ligature Resistant
No
Lockset Finish
Satin Chrome
Pins
0
Case Material
Steel, Zinc
Keyway Type
None
Function
Privacy
Handle Type
Solid Tube/Return
Fire Rated
3 hr.
Key Type
Not Keyed
Visual Indicator Message
No Message
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Type
Mechanical
ANSI Grade
1
Ligature-Resistant
Not Ligature-Resistant
Includes Hardware
Hardware Included
Application
Commercial, Industrial
Lockset Function ANSI Code
F19
Hand Orientation
Non-Handed
Latch Bolt/Dead Bolt
Latch Bolt
Lockset Style
40H Escutcheon
Fire Rating
3 hr
Knob/Handle Material
Brass, Bronze, Stainless Steel
Cylinder Core Type
Interchangeable Core Cylinder
Performance Grade
1
Locking/Unlocking Access - Inside
Thumb Turn
Locking/Unlocking Access - Outside
Coin Turn

Description

Lever Lockset,Mechanical,Privacy,Grd. 1
