Best Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec. 45HW7DEU15H613RQE - main

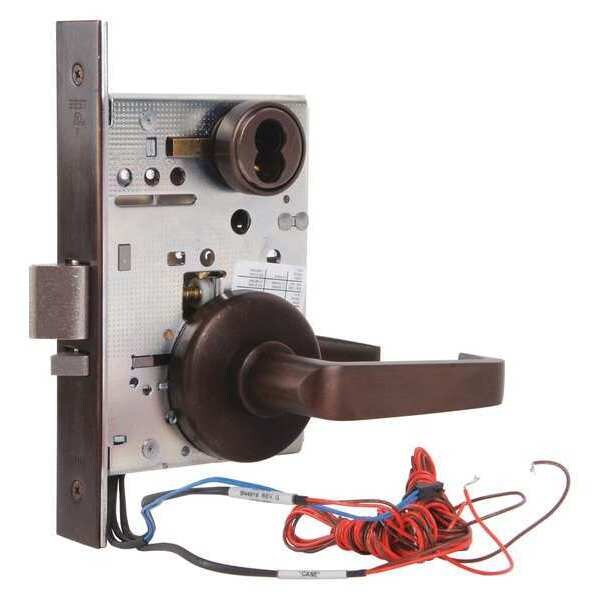

Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec.

  • Mfr # 45HW7DEU15H613RQE

  • Zoro # G0395809

product price:  $1,418.99
/ea
Free Shipping & Returns

Key Features

Finish
Oxidized Bronze, Oil Rubbed
For Use With
Hollow Metal and Wood Doors
Includes
H Rose Flat with Round Edge with the Request to Exit Option (RQE)
Style
40H Rose
Series
40H Series
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
45HW7DEU15H613RQE
Zoro #
G0395809
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Width
1/8 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
5 in
Strike Plate Thickness
1 1/4 in
Door Thickness - Minimum
1 3/4 in

Details

Item
Door Lockset
Finish
Oxidized Bronze, Oil Rubbed
For Use With
Hollow Metal and Wood Doors
Includes
H Rose Flat with Round Edge with the Request to Exit Option (RQE)
Style
40H Rose
Series
40H Series
Application
Commercial, Industrial
Features
Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
Backset
2 3/4 in
Strike Type
ANSI
Lockset Grade
1
Number of Keys
0
ADA Compliant
Yes
Lockset Finish
Oil Rubbed Bronze
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Location Type
Commercial
Lockset Fire Rating
3 hr
Electrical/Mechanical
Electrical
Lockset Function
Storeroom
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Mortise/Cylindrical
Mortise
Ligature Resistant
No
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
Grade
1
Case Material
Steel, Zinc
Function
Storeroom, Fail Secure
Keyway Type
None
Pins
0
Handle Type
Contour/Angle Return
Fire Rated
3 hr.
Number of Pins
7
Key Type
Not Keyed
Visual Indicator Message
No Message
Lockset Style
40H Rose
Performance Grade
1
Knob/Handle Material
Brass, Bronze, Stainless Steel
ANSI/BHMA Finish
Dark Oxidized Satin Bronze, Oil Rubbed
Fire Rating
3 hr
ANSI Grade
1
Includes Hardware
Hardware Included
Lockset Type
Mechanical
Latch Bolt/Dead Bolt
Latch Bolt
Cylinder Core Type
Interchangeable Core Cylinder
Hand Orientation
Non-Handed
Ligature-Resistant
Not Ligature-Resistant
Locking/Unlocking Access - Outside
Keyway

Description

Lever Lockset,Mechanical,Storeroom,Grd.1
