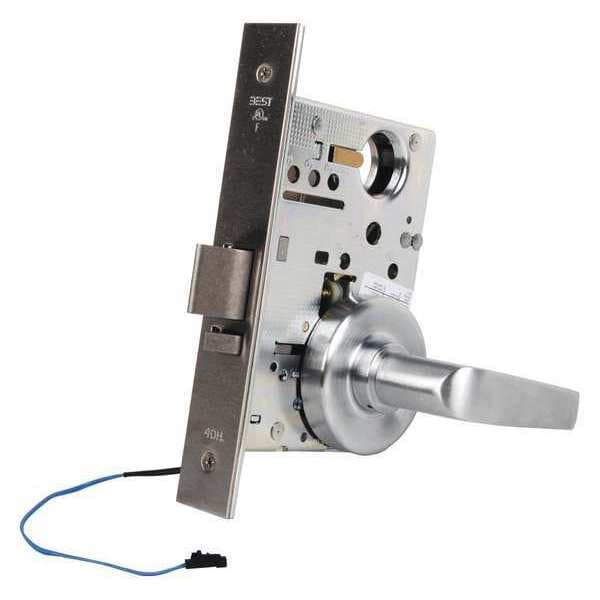

Best Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec. 45HW7DEU15R626 - main

Mortise Lockset, Lever, 40H Ser., 40H Rose, Store, Elec.

  • Mfr # 45HW7DEU15R626

  • Zoro # G0395720

product price: $1,765.99
/ea
Free Shipping & Returns

Key Features

Finish
Satin Chrome
For Use With
Hollow Metal and Wood Doors
Includes
Hardware
Style
40H Rose
Series
40H Series
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45HW7DEU15R626
Zoro #
G0395720
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Width
1/8 in
Strike Plate Thickness
1 1/4 in
Door Thickness - Maximum
5 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in

Details

Item
Door Lockset
Finish
Satin Chrome
For Use With
Hollow Metal and Wood Doors
Includes
Hardware
Style
40H Rose
Series
40H Series
Application
Commercial, Industrial
Features
Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
Strike Type
ANSI
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Lockset Finish
Satin Chrome
Electrical/Mechanical
Electrical
Backset
2 3/4 in
Mortise/Cylindrical
Mortise
Mortise / Cylindrical
Mortise
Number of Keys
0
Lockset Function
Storeroom
Lockset Handle Type
Lever
Ligature Resistant
No
Lockset Fire Rating
3 hr
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
Lockset Grade
1
Location Type
Commercial
ADA Compliant
Yes
Function
Storeroom
Handle Type
Contour/Angle Return
Fire Rated
3 hr.
Number of Pins
7
Keyway Type
None
Grade
1
Pins
0
Case Material
Steel, Zinc
Key Type
Not Keyed
Visual Indicator Message
No Message
Lockset Type
Mechanical
ANSI/BHMA Finish
Satin Chromium-Plated
Locking/Unlocking Access - Outside
Keyway
Ligature-Resistant
Not Ligature-Resistant
Latch Bolt/Dead Bolt
Latch Bolt
Fire Rating
3 hr
Knob/Handle Material
Brass, Bronze, Stainless Steel
Includes Hardware
Hardware Included
Hand Orientation
Non-Handed
Lockset Style
40H Rose
Cylinder Core Type
Interchangeable Core Cylinder
Performance Grade
1
ANSI Grade
1

Description

Lever Lockset,Mechanical,Storeroom,Grd.1
