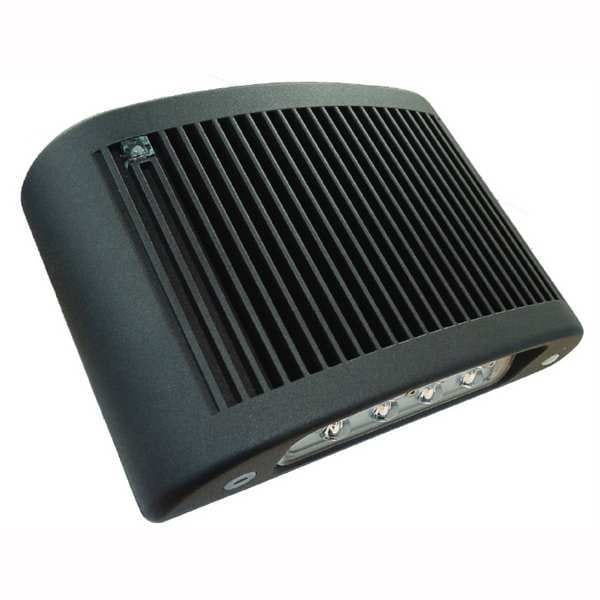

Emergency Egress Lighting, LED, 120/277V

  • Mfr # FCL-EM-DB-HTR
  • Zoro # G302737236
product price:
$
225.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Housing Material
Aluminum
Housing Color
Bronze
Includes
Battery Backup, Heater
IP Rating
IP65
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FCL-EM-DB-HTR
Zoro #
G302737236
UPC #
-
Country of Origin
China

Dimensions

Overall Length
9 in
Fixture Width
9 in
Overall Height
6 1/4 in
Fixture Height
6 1/4 in
Height
6 1/4 in
Length
9 in
Overall Width
9 in
Width
9 in
Depth
2 1/2 in
Mounting Height - Maximum
10 ft
Manufacturers Warranty Length
5 yr
Hub Size
1/2 in NPT
Knockout Size
1/2 in
Wire Rope Length
9 in

Details

Item
Wall Pack with Emergency Battery Backup
Lighting Technology
LED
Housing Material
Aluminum
Housing Color
Bronze
Includes
Battery Backup, Heater
IP Rating
IP65
Standards
UL 924
Color Temperature
4000 K
Features
24 Hour Recharge After Full Discharge, Automatic Charger, Battery Heater Standard for Cold Locations (-40 Degrees F), Brownout Sensitivity, Dark Sky Compliant, Integral Photocell - Operates Dusk to Dawn in Ac Mode, Integrated Solid State System, Low-Voltage Battery Cutoff, Self Diagnostic Standard, Suitable for Indoor or Outdoor Applications, Test Switch / Ac on Power Indicator Light, UVResistant Poly-Carbonate Lens, Voltage Surge Protection
Lamp Watts
18 W
Fixture Wattage
18 W
Output Voltage
7.2V DC
Housing Finish
Powder Coated
Emergency Illumination Time
90 min
Voltage
120/277V AC
Color
Bronze
Fixture Lens Material
Polycarbonate
Series
FCL
Number of Lamp Heads
1
Warranty
5 yr
Lighting Certification
DesignLights Consortium (DLC)
Fixture Housing Material
Aluminum
Fixture Housing Color
Bronze
Power Source
AC & battery
Battery Type
7.2V Nickel Cadmium Maintenance-Free Battery
Number of Bulbs
8
Battery Chemistry
Nickel Cadmium
Lumens
1600 lumens in AC mode. 600 lumens in emergency mode.
Application
Internal Heater for Cold Weather, Outdoor Emergency Wall Pack
Compliance Type
Chicago Approved, New York Approved
Emergency Wattage
15 W
Lamp Wattage
15 W
Environmental Rating
Outdoor, Wet Location
Light Technology
LED
Special Features
Brownout Sensitivity, Low-Voltage Battery Cutoff, Voltage Surge Protection
Lumens per Watt
89 lm/W
Fixture Sensor Type
Photocell
Lens Material
Polycarbonate
Min. Operating Temp.
-40 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Metal Halide Wattage Equivalency
35 W
Sensor Type
Photocell Included
Low Pressure Sodium Wattage Equivalency
20 W
Number of Hubs
0
Number of Knockouts
2
Light Output
600 lm, 1,600 lm
Light Distribution Type - NEMA
NEMA 5x5
Lumen Selectable
Not Selectable
Color Selectable
Not Selectable
High Pressure Sodium Wattage Equivalency
18 W
Incandescent Wattage Equivalency
100 W
Minimum Run Time
90 min
Light Distribution Type - IESNA
Type I

Description

Wall Pack with Emergency Battery Backup, Lumens 600 lm, 1,600 lm, Fixture Wattage 18 W, Voltage 120/277V AC, Fixture Sensor Type Photocell, Light Technology LED, Color Temperature 4000K, Height 6 1/4 in, Width 9 in, Depth 2 1/2 in, Lamp Watts 18 W, Fixture Housing Color Bronze, Fixture Housing Material Aluminum, Fixture Lens Material Polycarbonate, IP Rating IP65, Lumens per Watt 89 lm/W, Min. Operating Temp. -40 Degrees F, Standards UL 924, Warranty 5 yr

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
This item has been restricted from sale in the following states: CA
